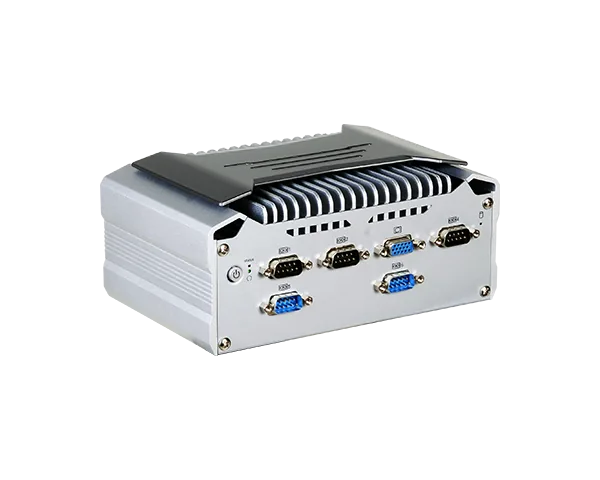

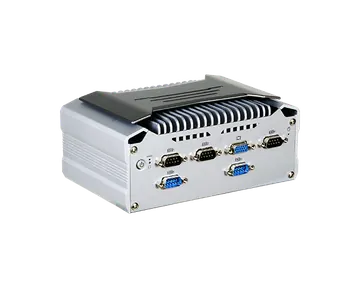

VC70B-KU
Fanless In-Vehicle System, 7th Gen Intel® Core™, DDR4, 2 Mini PCIe, 1 VGA + 1 HDMI
- Compact and Fanless In-Vehicle System
- 4GB/8GB DDR4 memory onboard
- 1x 2.5" SATA 3.0 Drive Bay
- Supports 2 Mini PCIe for Extension Modules
- Rich I/O ports: 2 Intel GbE, 6 COM, 4 USB 3.0, 2 USB 2.0
- 15-Year CPU Life Cycle Support Until Q1' 32 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#IoT
#Intel
#CAN-Bus
#Mini PCIe
#Fanless Design
#4K2K Display
#Windows
#Linux
#HDMI
#VGA
#DDR4
#E-Mark (E13) Certification
#RoHS Certification
#CE Certification
#FCC Certification
#In-Vehicle
Főbb jellemzőkKey features
- Compact and Fanless In-Vehicle System
- 4GB/8GB DDR4 memory onboard
- 1x 2.5" SATA 3.0 Drive Bay
- Supports 2 Mini PCIe for Extension Modules
- Rich I/O ports: 2 Intel GbE, 6 COM, 4 USB 3.0, 2 USB 2.0
- 15-Year CPU Life Cycle Support Until Q1' 32 (Based on Intel IOTG Roadmap)
System
- Processor
- 7th Generation Intel® Core™ Processors, FCBGA 1356 Intel® Core™ i7-7600U Processor, Dual Core, 4M Cache, 2.8GHz, 15W Intel® Core™ i5-7300U Processor, Dual Core, 3M Cache, 2.6GHz, 15W Intel® Core™ i3-7100U Processor, Dual Core, 3M Cache, 2.4GHz, 15W
- Memory
- 4GB/8GB Memory Onboard Dual Channel DDR4 2133MHz
- BIOS
- Insyde SPI 128Mbit
Graphics
- Controller
- Intel® HD Graphics GT Series
- Display
- 1 x VGA 1 x HDMI VGA: resolution up to 1920x1200 @ 60Hz HDMI: resolution up to 4096x2160 @ 24Hz
- Dual Displays
- VGA + HDMI
Storage
- External/Internal
- 1 x 2.5" SATA 3.0 Drive Bay
Expansion
- Interface
- 1 x Full-size Mini PCIe (PCIe+USB) 1 x Half-size Mini PCIe (PCIe+USB+SATA)
Audio
- Audio Codec
- Realtek ALC888 5.1-channel
Ethernet
- Controller
- 1 x Intel® I210IT (10/100/1000Mbps) 1 x Intel® I219LM (10/100/1000Mbps)
LED
- Indicators
- 1 x Status LED 1 x HDD LED

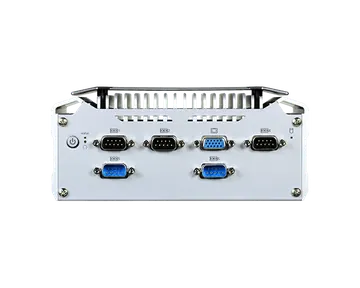

Front I/O
- Serial
- 2 x RS-232/422/485 (DB-9, COM 1~2) 3 x RS-232 (DB-9, COM 4~6, COM 4 supports 8-bit DIO or CAN-Bus )
- Display
- 1 x VGA
- Buttons
- 1 x Power Button 1 x Reset Button

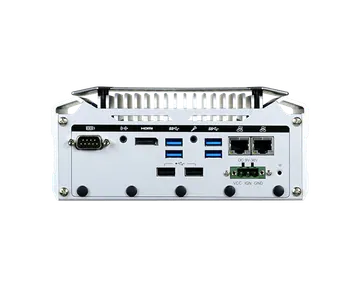

Rear I/O
- Ethernet
- 2 x GbE (RJ-45)
- Serial
- 1 x RS-232 (DB-9, COM 3)
- USB
- 4 x USB 3.0 (type A) 2 x USB 2.0 (type A)
- Display
- 1 x HDMI
- Audio
- 1 x Line-out 1 x Mic-in
- Wi-Fi Antenna
- 5 x Wi-Fi Module Antenna Hole
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Power
- Type
- 9~36V DC-in power with ignition delay on/off
- Connector
- DC Jack
OS Support
- OS Support
- Windows 10 (64-bit) Windows 10 IoT Enterprise (64-bit) Linux
Environment
- Operating Temperature
- -20 to 60°C
- Storage Temperature
- -20 to 85°C
- Relative Humidity
- 5 to 95% RH (non-condensing)
Mechanism
- Construction
- Aluminum + Sheet Metal
- Mounting
- Wall/VESA/DIN Rail Mount
- Dimensions (W x H x D)
- 184mm x 82mm x 118.4mm
- Weight
- 1.6 Kg
Standards and Certifications
- Shock
- MIL-STD 810G 516.6 Operating: 10G, 11ms Non-Operating: 40G, 11ms
- Vibration
- MIL-STD 810G 514.6C-3
- Certifications
- CE, FCC Class A, RoHS, E-Mark (E13)
Packing List
- Packing List
- 1 VC70B-KU system unit 4 Mounting screws for Mini PCIe module: 531-510180-000G 1 Power Connector: 342-360030-110G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| VC70B-KU6862-714 | 750-VC70B0-000G | Intel Core i3-7100U, 1 HDMI, 1 VGA, 2 LAN, 6 COM, 6 USB, 4GB DDR4 onboard |
| VC70B-KU6862-738 | 750-VC70B0-100G | Intel Core i5-7300U, 1 HDMI, 1 VGA, 2 LAN, 6 COM, 6 USB, 8GB DDR4 onboard |
| VC70B-KU6862-768 | 750-VC70B0-200G | Intel Core i7-7600U, 1 HDMI, 1 VGA, 2 LAN, 6 COM, 6 USB, 8GB DDR4 onboard |
| Item Name | Part Number | Description |
|---|---|---|
| SSD | 635-610002-110G 635-605122-110G 635-602562-120G 635-601282-190G 635-600642-150G | 2.5" SATA SSD, 1TB MLC, RoHS 2.5" SATA SSD, 512G MLC, RoHS 2.5" SATA SSD, 256G MLC, RoHS 2.5" SATA SSD, 128G MLC, RoHS 2.5" SATA SSD, 64G MLC, RoHS |
| mSATA | 638-712803-100G 638-706405-110G 638-703206-100G | mSATA Card, 128GB MLC, RoHS mSATA Card, 64GB MLC, RoHS mSATA Card, 32GB MLC, RoHS |
| Wi-Fi | 761-110091-000G | Wi-Fi Kit, RoHS |
| 3G+GPS | 761-110040-600G | 3G + GPS Kit, RoHS |
| Power Adapter | 671-112005-100G | 120W, 24V/5A for test/validation only |
| Wall Mount | 761-EC8000-000G | EC700/800/70A/80A Wall Mount Kit, RoHS |
| VESA Mount | 761-EC7000-100G | EC700/EC70A/EC70B VESA Mount Kit, RoHS |
| DIN Rail Mount | 761-EC70B0-000G | EC70B DIN Rail Mount Kit, RoHS |
