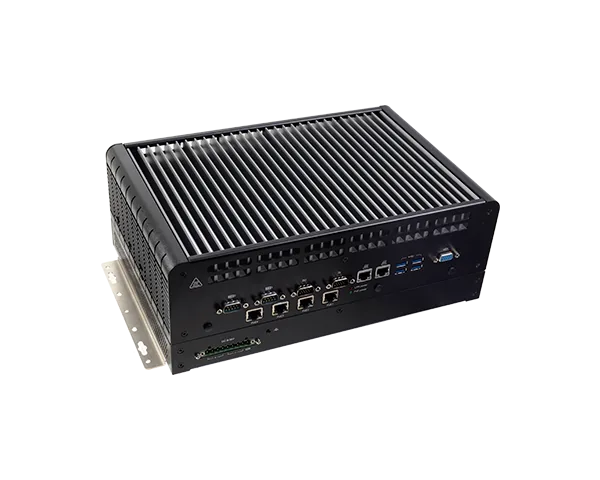

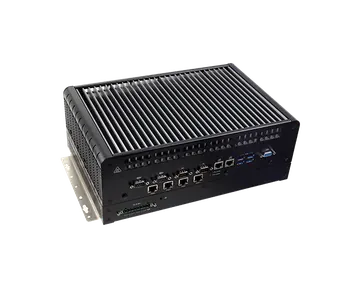

VC300-CS
DFI's VC300-CS is the PoE/MXM-module support In-Vehicle/Railway System powered by 8th/9th Intel® Processors. It designed for Electric interurban bus, Autonomous, MaaS, Fleet management, Robotaxi, AI Railway surveillance, Driver-less, Autopilot, track monitoring, and more. DFI VC300-CS support 8th/9th Gen Intel® Core, DDR4, 3 Mini PCIe, 2 M.2, 1 HDMI, 1 VGA, 1 DP++.
- 8th/9th Generation Intel® Core™ Processors
- 4 x 802.3af PoE ports
- AI accelerated: up to 150W MXM GPU module supported
- Multiple expansion slots for 5G cellular supported
- Extended operating temperature: -20°C to 70°C
- 15-Year CPU Life Cycle Support Until Q1' 34 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#Edge AI Computing
#E-Mark (E24) Certification
#MXM
#IoT
#Intel
#5G
#PoE
#CAN-Bus
#Mini PCIe
#PCIe x16
#Windows
#HDMI
#VGA
#Multiple Expansion
#DDR4
#RoHS Certification
#CE Certification
#FCC Certification
#In-Vehicle
#High-Performance
#UKCA Certification
Főbb jellemzőkKey features
- 8th/9th Generation Intel® Core™ Processors
- 4 x 802.3af PoE ports
- AI accelerated: up to 150W MXM GPU module supported
- Multiple expansion slots for 5G cellular supported
- Extended operating temperature: -20°C to 70°C
- 15-Year CPU Life Cycle Support Until Q1' 34 (Based on Intel IOTG Roadmap)
System
- Processor
- 8th/9th Generation Intel® CoreTM Processors, LGA 1151 - Intel® Core™ i7-9700TE 8C/8T 1.8GHz 12MB cache, TDP 35W with Q370PCH - Intel® Core™ i7-8700T 6C/12T 2.4GHz 12MB cache, TDP 35W with Q370PCH - Intel® Core™ i7-9700E 8C/8T 2.6GHz 12MB cache, TDP 65W with Q370PCH - Intel® Core™ i5-9500TE 6C/6T 2.2GHz 9MB cache, TDP 35W with Q370PCH (Other CPU support upon request)
- Chipset
- Intel® Q370 Chipset
- Memory
- Dual Channel DDR4 2666/2400 MHz by SODIMMs up to 64GB
- BIOS
- AMI SPI 128Mbit
Graphics
- Controller
- Intel® HD Graphics
- Display
- 1 x VGA (display out by DB-15 connector) 1 x HDMI (with screw lock) 1 x DP++ (standard display port connector DIP type with screw lock) Support NIVIDIA Optimus technology VGA: resolution up to 1920x1200@60Hz HDMI: resolution up to 4096x2160@24Hz DP++: resolution up to 4096x2304@60Hz
AI Accelerator
- Interface
- MXM Type A, B, C on x16 PCIe 3.0
- Controller
- Nvidia Quadro embedded/ Geforce series
Storage
- External
- 2 x Swappable 2.5” storage bays with lock. Supports 7mm SSD devices
- Internal
- 1 x M.2 2280 M key supports SATA SSD
Expansion
- Interface
- 1 x Half-size Mini PCIe for WiFi/BT modules, with PCIe x1 & USB signal 2 x Full-size Mini PCIe support PCIe x1, USB 2.0 signal with SIM card socket of each 1 x M.2 B key supports 3042, 3052 devices or 5G module on PCIe x1, USB2.0, USB3.0 signal with SIM card slot bracket - SIM card can all be external accessible 1 x M.2 2280 M key supports 2242, 2260 & 2280 devices (PCIe x4 & SATA signal, support boot up function)
Audio
- Audio Codec
- Realtek ALC888
- Interface
- 1 x Mic-in 1 x Line-out
Ethernet
- Controller
- 5 x Intel® I210IT NIC (10/100/1000Mbps) 1 x Intel® I219LM with iAMT11.0 PCIe (10/100/1000Mbps) (only Core i7/i5 supports iAMT)
LED
- Indicators
- 1 x Power LED (green) 5 x Storage LED (red) 4 x PoE LED

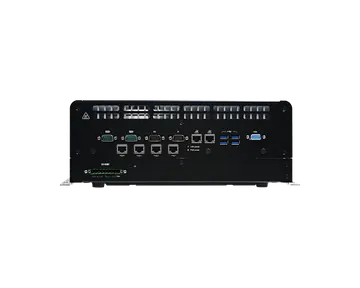

Front I/O
- PoE
- 4 x PoE ports at RJ45 or M12 X-coded connectors Support 802.3af, max 15.4W (PSE side) NOT support Wake on Lan
- Ethernet
- 2 x GbE (RJ-45) support Wake on Lan
- Serial
- 2 x High speed full RS-232/422/485 (DB-9) 2 x RS-232/422/485 (pin headers)
- USB
- 4 x USB 3.0 (type A)
- Display
- 1 x VGA display out by DB-15 connector
- DIO
- 1 x 8-bit isolated DI port by DB-9 connector 1 x 8-bit isolated DO port by DB-9 connector 2KV isolation
- Power-in
- 1 x 9pins 5.0mm terminal block

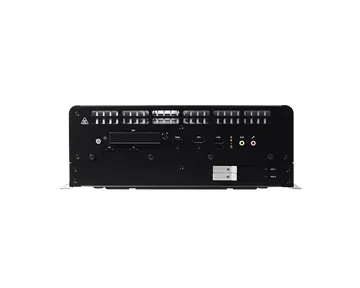

Rear I/O
- USB
- 2 x USB 2.0 (type A)
- Display
- 1 x HDMI 1 x DP++
- Audio
- 1 x Mic-in 1 x Line-out by 3.5mm 3P Phone Jack
- Buttons
- 1 x Power button 1 x Reset button
- Antenna
- 7 x SMA type antenna hole for GNSS, WWAN/LTE MIMO, WLAN/ BT MIMO, 5G
- SIM
- 3 x SIM sockets (external accessible with cover)
Watchdog Timer
- Output & Interval
- System reset, programmable via software from 1 to 255 seconds
Security
- TPM
- TPM 2.0
Power
- Type
- +12VDC (9~36V), +24VDC(14.4~33.6) +12V and +24V compliant to eMark with power ignition function Reverse polarity protection
- Connector
- 9-pin 5.0mm terminal block
OS Support
- Microsoft
- Windows 10 IoT Enterprise 64 Bit
- Linux
- Ubuntu 18.04
Environment
- Operating Temperature
- -20°C to 70°C with when CPU+GPU<100W without fan -20°C to 60°C with when CPU+GPU<160W without fan -20°C to 70°C when CPU+GPU<190W with active fan CPU throttling at high temperature is acceptable
- Storage Temperature
- -40°C to 85°C
- Relative Humidity
- 10% to 90% (non-condensing)
Mechanism
- Construction
- Metal + Aluminum
- Mounting
- Wall mount
- Dimensions (W x H x D)
- 340.5 x 132 x 223 mm (3U height, excluding rubber foot)
- Weight
- 9.85 kg
Standards and Certifications
- Shock
- MIL-STD-810G Method 516.6, Procedure 1, OP:10G 11ms, Non-OP: 40G 11ms (Test by SSD, HDD is not support)
- Vibration
- MIL-STD-810G Method 514.6C-3, Category 4 Composite wheeled vehicle Table 514.6C-VI
- Certifications
- CE, FCC, UKCA, RoHS, E-Mark
Packing List
- Packing List
- 1 VC300-CS system unit 1 Power connector 1 Mounting bracket
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Item Name | Part Number | Description |
|---|---|---|
| 2.5" SSD | 785-S251TBG 785-S25512G 785-S25256G 785-S25128G | 2.5" SATA SSD, 1TB MLC, -40 to 85°C, RoHS 2.5" SATA SSD, 512GB MLC, -40 to 85°C, RoHS 2.5" SATA SSD, 256GB MLC, -40 to 85°C, RoHS 2.5" SATA SSD, 128GB MLC, -40 to 85°C, RoH |
| M.2 SATA SSD | 785-M2SATA64G 785-M2SATA128G 785-M2SATA256G 785-M2SATA512G | 64GB, M.2 2280 SSD, SATA3 B+M Key, MLC, Wide Temp. 128GB, M.2 2280 SSD, SATA3 B+M Key, MLC, Wide Temp. 256GB, M.2 2280 SSD, SATA3 B+M Key, MLC, Wide Temp. 512GB, M.2 2280 SSD, SATA3 B+M Key, 3D TLC, PE: 3K, 30u” -20~75℃ |
| Memory | 138-580004-104G 138-540002-121G | 8GB DDR4 2666Mhz SO-DIMM 1Rx8 IND 1Gx8 CL19 1.2V 4GB DDR4 2666Mhz SO-DIMM, '-40 to 85C |
| WiFi/BT module kit | 761-AP1235-000G | WiFi/Bluetooth Module ENL-R8852BE, antenna *2, 200mm SMA cables*2, Mini PCIe Bracket, screws |
| LTE module kit | 761-RC3000-001G | EG25GGB CAT4 miniPCIe module, antenna*2, 300mm SMA cables*2 |
| 5G module kit | 761-RC3000-100G | RM520N-GL-M2 M.2 module, antenna*4, 184mm SMA cables *4 |
| M12 Cable | A81-005038-054G | 8-pin M12 X-coded to RJ45 PoE cable |
| CAN bus module | 770-MPEC21-100G | MPE-CAN2 MiniPCIe Full CAN Module Card Asssembly |
