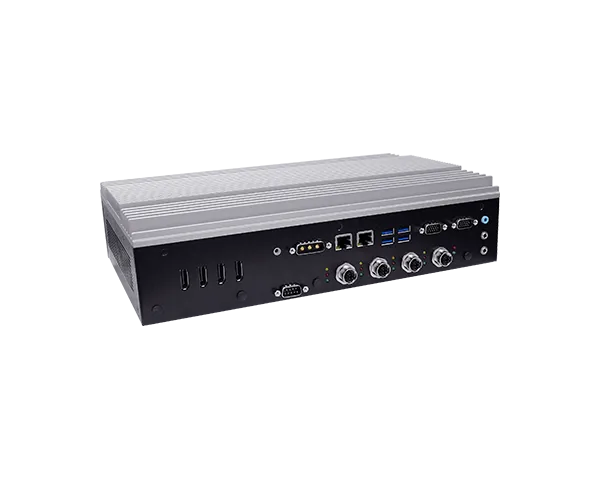

VC500-CMS-MXM
Fanless In-Vehicle Edge AI System, 10th Gen Intel® Core™, DDR4, 1 miniPCIe, 4 M.2 slots, 2 DP++, 1 DP++/HDMI
- High Performance Fan-less Edge AI In-Vehicle System
- Supports 10th Gen Intel® Xeon/Core™/Pentium/Celeron Processors
- 4x M12/RJ45 802.11af PoE or 2x 10G SFP+ Ports
- Supports MXM GPU module with Four Display Ports
- 1 miniPCIe and 4 M.2 slots for CAN bus/LTE/5G/WiFi/Storage modules
- Supports M.2 B key 3042/3052 5G-NR module with dual SIM
- OOB management support upon request
- 15-Year CPU Life Cycle Support Until Q1' 34 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#Edge AI Computing
#E-Mark (E24) Certification
#Out-Of-Band (OOB)
#AI
#Intel
#SIM Slot
#5G
#PoE
#CAN-Bus
#Mini PCIe
#Fanless Design
#Linux
#HDMI
#DP
#Multiple Expansion
#DDR4
#RoHS Certification
#CE Certification
#FCC Certification
#In-Vehicle
#10th Gen Intel® Comet Lake Processor
#UKCA Certification
Főbb jellemzőkKey features
- High Performance Fan-less Edge AI In-Vehicle System
- Supports 10th Gen Intel® Xeon/Core™/Pentium/Celeron Processors
- 4x M12/RJ45 802.11af PoE or 2x 10G SFP+ Ports
- Supports MXM GPU module with Four Display Ports
- 1 miniPCIe and 4 M.2 slots for CAN bus/LTE/5G/WiFi/Storage modules
- Supports M.2 B key 3042/3052 5G-NR module with dual SIM
- OOB management support upon request
- 15-Year CPU Life Cycle Support Until Q1' 34 (Based on Intel IOTG Roadmap)
System
- Processor
- 10th Gen Intel® Xeon/Core™/Pentium/Celeron Processors, LGA 1200 Socket - Intel® Xeon-1270TE (8 Cores, 16M Cache, up to 2.0/4.4 GHz); 35W - Intel® Core™ i9-10900TE (10 Cores, 20M Cache, up to 1.8/4.5 GHz); 35W - Intel® Core™ i7-10700TE (8 Cores, 16M Cache, up to 2.0/4.4 GHz); 35W - Intel® Core™ i5-10500TE (6 Cores, 12M Cache, up to 2.3/3.7 GHz); 35W - Intel® Core™ i3-10100TE (4 Cores, 6M Cache, to 2.3/3.6 GHz); 35W
- Chipset
- Intel® Q470E/W480E Chipset
- Memory
- Dual SO-DIMM slots (horizontal type) with anti-vibration bracket Dual Channel DDR4 2933/2666/2400/2133 SDRAM, up to 64GB ECC support for Xeon-1270TE processor only
- BIOS
- AMI SPI 256Mbit
Graphics
- Controller
- Intel® processor integrated or Independent MXM module by BIOS selection
- Display
- 4 x Display Ports with lock holes from MXM 1 x HDMI combo port and 2 x DP++ ports from CPU
- Compatible MXM
- Type A or B MXM modules: RTX A2000, RTX3000, A500, A1000
Storage
- External
- 2 x swappable 2.5" SATA drive bays with lock on rear panel Supports RAID 0/1
- Internal
- 1 x M.2 2280 M Key slot, supports 2280 devices PCIe x4 & SATA signal, support boot up function
- Interface
- SATA
Audio
- Audio Codec
- ALC 888
- Interface
- 1 x Mic-in 1 x Line-in
Ethernet
- Controller
- 1 x Intel® i219LM with iAMT11.0 support (Core i7/i5 only) 1 x Intel® i210IT
LED
- Indicators
- 1 x Storage Activity (Red) 1 x Power (Green) 2 x Programmable general purpose (Green, Blue)

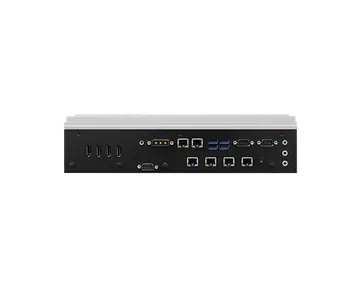

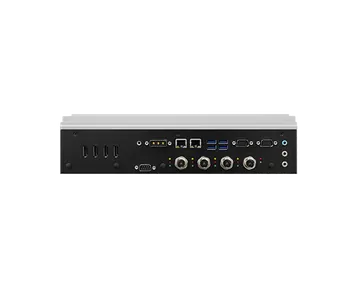

Front I/O
- Ethernet
- 2 x RJ45 GbE ports
- Serial
- 1 x DB-9 RS232 ports (COM 5)
- USB
- 4 x USB 3.1 Gen2
- Audio
- 1 x Line-out, 1 x Mic-in and 1x Line-in with 3.5mm audio jacks
- DIO
- 2 x Isolated DIO port by 2 x DB-15 female connectors Supports 8bit DI & 8 bit DO with 2KV isolation
- Antenna
- 2 x antenna holes
- DC in
- W3 3 pin connector
- OOB
- Optional RJ45 port for OOB management

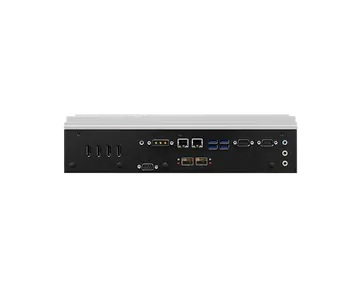

- PoE/ 10G
- 4 x 802.11af PoE ports at RJ45 or M12 X-coded connectors, max 15.4W (PSE side) or 2 x 10G fiber ports at SFP+ cage based on Intel X710-BM2 Ethernet controller

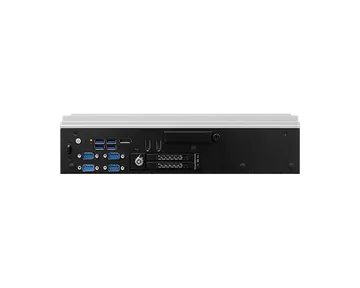

Rear I/O
- Serial
- 4 x DB-9 RS232/422/485 ports by BIOS selection (COM 1/2/3/4)
- USB
- 4 x USB 3.1 Gen2
- Display
- 4 x Display Ports with lock holes from MXM 1 x DP++/HDMI combo port and 2 x DP++ ports from CPU
- Buttons
- 1 x Power Button 1 x Reset Button
- Switch
- 2-pin remote switch
- Antenna
- 2 x antenna holes
- SIM
- 3 x accessible SIM slots with cover bracket
- CANBus
- 2 x DB-9 ports for CAN bus (optional)
Side I/O
- Antenna Hole
- 2 x antenna holes on right side 2 x antenna holes on left side
Internal I/O
- Serial
- 1 x 2x5 pin block header for RS232
- Mini PCIe
- 1 x mini PCIe slot with SIM holer on faceplate Supports WiFi/BT/LTE or CAN bus module
- M.2
- Total 3 x M.2 slots 1 x 2230 E-key slot (PCIe x1 & USB2.0) 1 x 3042/3052 B-Key (USB3.0 & PCIex1) with dual SIM slots on faceplate 1 x 2280 M-Key-slot (PCIe gen3 x4 & SATA) supporting Intel® Optane memory (Both of the M10 and H10) and NVMe
Cooling
- Fan
- Passive cooling by default Optional Fan cooling upon request
Security
- TPM
- Supports dTPM2.0 by default (disabled by BIOS setting) Optional fTPM2.0 supported
Hardware Monitor
- Gravity Sensor
- Support 3-axis femto accelerometer User-selectable ±2g/±4g/±8g/±16g scale Supports 6D/4D orientation detection, Free-fall detection, Motion detection and leep-towake and return-to-sleep
Power
- Type
- 3pin 3W3 connector
- Supply
- Wide Range 9~50VDC with power management (on/off delay) and ignition
OS Support
- Microsoft
- Windows 10 IoT Enterprise RS5 Windows 11 IoT Enterprise LTSC SW
- Linux
- Ubuntu Linux 20.04
Environment
- Operating Temperature
- -20°C to 60°C without turbo boost and throttling is expected
- Storage Temperature
- -40°C to 85°C
- Relative Humidity
- 10% to 95% (non-condensing)
Mechanism
- Construction
- Metal + Aluminum
- Mounting
- Wall mount
- Dimensions (W x H x D)
- 346mm x 87.55 mm x 221mm
- Weight
- 6.95 Kg
- Color
- Black and Silver
Standards and Certifications
- Shock
- MIL-STD-810G Method 516.6, Procedure 1, OP:10G 11ms, Non-OP: 40G 11ms (Test by SSD, HDD is not support)
- Vibration
- MIL-STD-810G Method 514.6C-3, Category 4 Composite wheeled vehicle Table 514.6C-VI
- Certifications
- FCC, E-Mark, CE, RoHS, UKCA
Packing List
- Packing List
- 1 VC500-CMS-MXM system unit 1 Power connector 1 Mounting bracket 1 3W3 adaptor cable
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| VC500-CMS-MXM-10G-Q | 750-VC50000-400G | Intel® Q470E Chipset, 8 USB 3.1, 1 DI, 1 DO, 2 10GLAN, 1 MXM slot, Power: 3pin 3W3 connector |
| VC500-CMS-MXM-POE-Q | 750-VC50000-500G | Intel® Q470E Chipset, 8 USB 3.1, 1 DI, 1 DO, 4 (RJ45) POE, 1 MXM slot, Power: 3pin 3W3 connector |
| VC500-CMS-A1000-POE-Q-i70 | 750-VC50000-510G | Intel® Core™ i7-10700TE, Intel® Q470E Chipset, 8 USB 3.1, 1 DI, 1 DO, 4 (RJ45) POE, 1 MXM-A1000 slot, Power: 3pin 3W3 connector |
| Item Name | Part Number | Description |
|---|---|---|
| 2.5" SSD | 785-S251TBG 785-S25512G 785-S25256G 785-S25128G | 2.5" SATA SSD, 1TB MLC, -40 to 85°C, RoHS 2.5" SATA SSD, 512GB MLC, -40 to 85°C, RoHS 2.5" SATA SSD, 256GB MLC, -40 to 85°C, RoHS 2.5" SATA SSD, 128GB MLC, -40 to 85°C, RoHS |
| M.2 SATA SSD | 785-M2SATA64G 785-M2SATA128G 785-M2SATA256G 785-M2SATA512G | 64GB, M.2 2280 SSD, SATA3 B+M Key, MLC, Wide Temp. 128GB, M.2 2280 SSD, SATA3 B+M Key, MLC, Wide Temp. 256GB, M.2 2280 SSD, SATA3 B+M Key, MLC, Wide Temp. 512GB, M.2 2280 SSD, SATA3 B+M Key, 3D TLC, PE: 3K, 30u” -20~75°C |
| Memory | 138-540002-121G 138-580004-104G | 4GB DDR4 2666Mhz SO-DIMM, -40 to 85°C 8GB DDR4 2666Mhz SO-DIMM 1Rx8 IND 1Gx8 CL19 1.2V |
| WiFi/BT module kit | 761-AP1235-000G | WiFi/Bluetooth Module AP12356, antenna *2, 200mm SMA cables*2, Mini PCIe Bracket, screws |
| LTE module kit | 761-RC3000-001G | Quectel EG25GGB CAT4 miniPCIe module, antenna*2, 300mm SMA cables*2 |
| 5G module kit | 761-RC3000-100G | SIM8202G-M2 M.2 module, antenna*4, 184mm SMA cables *4 |
| M12 Cable | A81-005038-054G | 8-pin M12 X-coded to RJ45 PoE cable |
| CAN bus module | 770-MPEC21-100G | MPE-CAN2 MiniPCIe Full CAN Module Card Asssembly |
| Power Switch Cable | A81-004363-054G | 3W3 to terminal block 2*4P/4.2mm, L=250 & 300mm with ignition switch button |
| Power Adapter | 671-133001-000G | 330W, GST360A, Input: 85~264V, Output: 12V/27.5A, 220x95x46mm, L=1000mm, C8P, LV6, 62368-1, GST360A12-C8P(MEAN WELL)RoHS |
