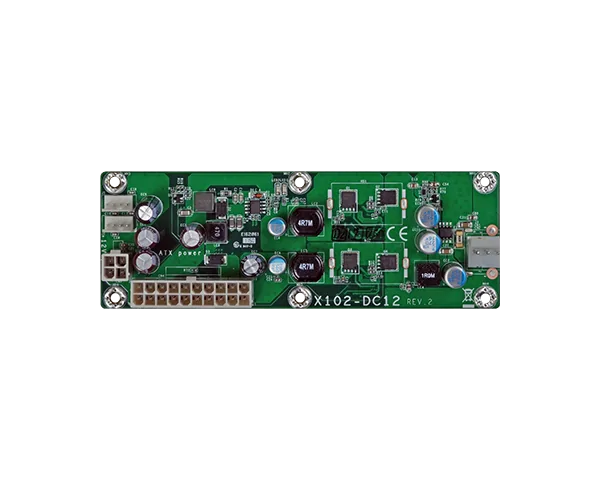

X102-DC12
11.4V - 12.6V DC to DC Converters
- 11.4V - 12.6V DC to DC Converters
- Input: 11.4V - 12.6V, Output: 130W
- DIMENSIONS: 146mm x 50mm
Főbb jellemzőkKey features
- 11.4V - 12.6V DC to DC Converters
- Input: 11.4V - 12.6V, Output: 130W
- DIMENSIONS: 146mm x 50mm
Specifications
- Features
- Input Voltage: 11.4V - 12.6V Maximum Output: 130W CONNECTORS: One DC 12V jack; One 4-pin ATX +12V power; One 20-pin ATX power DC INPUT: 2.5mm 12V jack ENVIRONMENT: Temperature: 0-60oC / 32-140oF; Relative Humidity: 10%-90% DIMENSIONS: 4 layers, 146mm x 50mm (5.74" x 1.96"); height: 25mm Output Voltage (power for DC voltages): Output Voltage/Output Current/Power Output/Test Result +3.3V ±5% /5A /16.5W /125.9w +5V ±5% /5A /25W /125.9w 5VSB ±5% /2A /10W /125.9w +12V ±5% /6A /72W/125.9w -12V ±10% /0.2A /2.4W/125.9w
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Certifications
