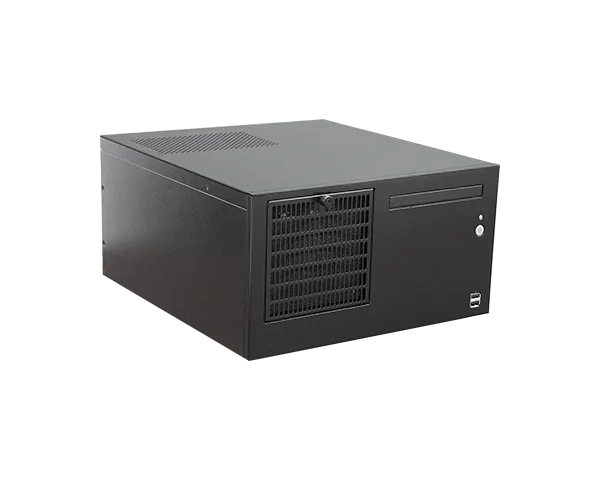

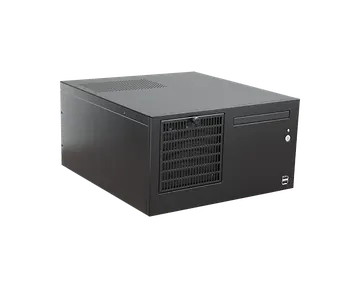

WM646-ADS
Industrial Desktop Computer, Wallmount Box IPC, 14th/13th/12th Gen Intel® Core™, DDR4, 1 VGA, 2 DP++, 1 HDMI, 1 PCIe x16, 4 PCIe x4, 2 PCI, 2 M.2 M key, 1 M.2 E Key, 2 Intel 10GbE, 2 Intel 2.5GbE, 4/6 USB 3.2 Gen2, 4/6 USB 3.2 Gen1, 3 USB 2.0
- Compact ATX IPC System, based on DFI ADS630-R680E with Standard Memory Height
- 4 DDR4 UDIMM up to 128GB
- Quad Independent Display: VGA + 2 DP++ + HDMI
- Multiple Expansion: 1 PCIe x16 (Gen5), 4 PCIe x4 (Gen4), 2 PCI, 2 M.2 M key, 1 M.2 E Key
- Rich I/O: 2 Intel 10GbE, 2 Intel 2.5GbE, USB 3.2 Gen2 (R680E 6x, Q670E 4x), USB 3.2 Gen1 (R680E 4x, Q670E 6x), 3 USB 2.0
Főbb jellemzők
Tanúsítványok
#12th Gen Intel® Core™ Processor
#13th Gen Intel® Core™ Processor
#Windows 10
#Edge AI Computing
#14th Gen Intel® Core™ Processor
#Windows 11
#Compact PC
#Compact Size
#PCIe x16
#Windows
#Linux
#HDMI
#VGA
#DP
#10G Ethernet
#DDR4
#RoHS Certification
#CE Certification
#FCC Certification
#2.5G Ethernet
Főbb jellemzőkKey features
- Compact ATX IPC System, based on DFI ADS630-R680E with Standard Memory Height
- 4 DDR4 UDIMM up to 128GB
- Quad Independent Display: VGA + 2 DP++ + HDMI
- Multiple Expansion: 1 PCIe x16 (Gen5), 4 PCIe x4 (Gen4), 2 PCI, 2 M.2 M key, 1 M.2 E Key
- Rich I/O: 2 Intel 10GbE, 2 Intel 2.5GbE, USB 3.2 Gen2 (R680E 6x, Q670E 4x), USB 3.2 Gen1 (R680E 4x, Q670E 6x), 3 USB 2.0
System
- Processor
- 14th Generation Intel® LGA 1700 Socket Processors Intel® Core™ I9-14900 (24 Cores, 36M Cache, up to 2.0 GHz); 65W Intel® Core™ I9-14900T (24 Cores, 36M Cache, up to 1.1 GHz); 35W Intel® Core™ I7-14700 (20 Cores, 33M Cache, up to 2.1 GHz); 65W Intel® Core™ I7-14700T (20 Cores, 33M Cache, up to 1.3 GHz); 35W Intel® Core™ I5-14500 (14 Cores, 24M Cache, up to 2.6 GHz); 65W Intel® Core™ I5-14500T (14 Cores, 24M Cache, up to 1.7 GHz); 35W Intel® Core™ I5-14400 (10 Cores, 20M Cache, up to 2.5 GHz); 65W Intel® Core™ I5-14400T (10 Cores, 20M Cache, up to 1.5 GHz); 35W Intel® Core™ I3-14100 (4 Cores, 12M Cache, up to 3.5 GHz); 60W Intel® Core™ I3-14100T (4 Cores, 12M Cache, up to 2.7 GHz); 35W Intel® 300 (2 Cores, 6M Cache, up to 3.9 GHz); 46W Intel® 300T (2 Cores, 6M Cache, up to 3.4 GHz); 35W 13th Generation Intel® LGA 1700 Socket Processors Intel® Core™ I9-13900E (24 Cores, 36M Cache, up to 5.2 GHz); 65W Intel® Core™ I9-13900TE (24 Cores, 36M Cache, up to 5.0 GHz); 35W Intel® Core™ I7-13700E (16 Cores, 30M Cache, up to 5.1 GHz); 65W Intel® Core™ I7-13700TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W Intel® Core™ I7-13700T (16 Cores, 30M Cache, up to 4.9 GHz); 35W Intel® Core™ I5-13500E (14 Cores, 24M Cache, up to 4.6 GHz); 65W Intel® Core™ I5-13500TE (14 Cores, 24M Cache, up to 4.5 GHz); 35W Intel® Core™ I5-13500T (14 Cores, 24M Cache, up to 4.6 GHz); 35W Intel® Core™ I5-13400E (10 Cores, 20M Cache, up to 4.6 GHz); 65W Intel® Core™ I3-13100E (4 Cores, 12M Cache, up to 4.4 GHz); 65W Intel® Core™ I3-13100TE (4 Cores, 12M Cache, up to 4.1 GHz); 35W Intel® Core™ I3-13100T (4 Cores, 12M Cache, up to 4.2 GHz); 35W 12th Generation Intel® LGA 1700 Socket Processors Intel® Core™ i9-12900E (16 Cores, 30M Cache, up to 5.0 GHz); 65W Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W Intel® Core™ i7-12700E (12 Cores, 25M Cache, up to 4.8 GHz); 65W Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.6 GHz); 35W Intel® Core™ i5-12500E (6 Cores, 18M Cache, up to 4.5 GHz); 65W Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W Intel® Core™ i3-12100E (4 Cores, 12M Cache, up to 4.2 GHz); 60W Intel® Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W Intel® Pentium® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W Intel® Pentium® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W Intel® Celeron® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W Intel® Celeron® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W
- Chipset
- [WM646-ADS-R680E] Intel® R680E Chipset [WM646-ADS-Q670E] Intel® Q670E Chipset
- Memory
- [WM646-ADS-R680E] Four 288-pin UDIMM up to 128GB [WM646-ADS-R680E] Dual Channel DDR4 3200 MHz (ECC support only) [WM646-ADS-Q670E] Four 288-pin UDIMM up to 128GB [WM646-ADS-Q670E] Dual Channel DDR4 3200 MHz
- BIOS
- AMI SPI 256Mbit
Graphics
- Controller
- Intel® UHD Graphics 700 series
- Feature
- OpenGL 4.5, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
- Display
- 1 x VGA 2 x DP++ 1 x HDMI 2.0a VGA: resolution up to 1920x1200 @ 60Hz DP++: resolution up to 4096x2304 @ 60Hz HDMI: resolution up to 4096x2160 @ 24Hz
- Quad Displays
- VGA + 2 DP++ + HDMI
Storage
- External
- 3 x 3.5” HDD 1 x Slim ODD
Expansion
- Interface
- 1 x PCIe x16 (Gen5) 4 x PCIe x4 (Gen4) 2 x PCI 1 x M.2 2230 E key (PCIe/USB 2.0/Intel CNVi/Wifi 6E as option, MOQ required) 1 x M.2 2242/2260/2280 M key (PCIe x4 NVMe share with PCIe x4 slot#2 as optional, MOQ required) 1 x M.2 2242/2260/2280 M key (PCIe x4 Gen3 NVMe/Intel Optane Memory support)
Audio
- Audio Codec
- Realtek ALC888
- Interface
- 1 x Line-out 1 x Mic-in 1 x Line-in (opt., MOQ required)
Ethernet
- Controller
- [WM646-ADS-R680E] 1 x Intel® I226-LM PCIe (10M/100M/1000Mbps/2.5G) (only Xeon, Core i9/i7/i5 support iAMT) [WM646-ADS-R680E] 1 x Intel® I226-V PCIe (10M/100M/1000Mbps/2.5G) [WM646-ADS-R680E] 2 x Intel® x550-AT2 (10 GBASE-T/1 GbE/100 Mbps) (R680E only, no support WOL) [WM646-ADS-Q670E] 1 x Intel® I226-LM PCIe (10M/100M/1000Mbps/2.5G) (only Xeon, Core i9/i7/i5 support iAMT) [WM646-ADS-Q670E] 1 x Intel® I226-V PCIe (10M/100M/1000Mbps/2.5G)

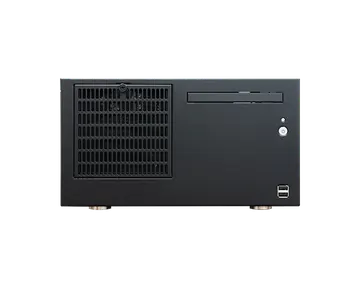

Front I/O
- USB
- 2 x USB (USB 3.0 Optional)
- Buttons
- 1 x Power Button
- LED Indicators
- 1 x Power LED 1 x HDD LED
- ODD
- 1 x Slim ODD (Optional)
- Fan
- 12cm Cooling-FAN + Door + Filter

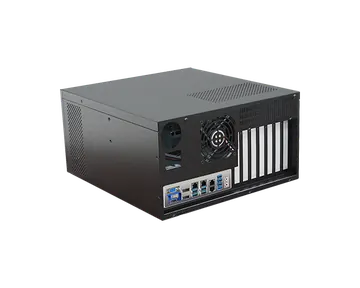

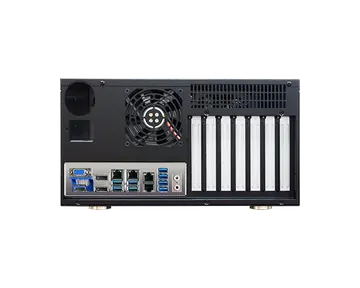

Rear I/O
- Ethernet
- 2 x 2.5GbE 2 x 10GbE (Optional)
- USB
- 4 x USB 3.2 Gen2 4 x USB 3.2 Gen1
- Display
- 2 x DP++ 1 x VGA 1 x HDMI 2.0a
- Audio
- 1 x Line-out 1 x Mic-in
Internal I/O
- Serial
- 2 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch) 4 x RS-232 (2.54mm pitch)
- USB
- [WM646-ADS-R680E] 2 x USB 3.2 Gen2 Key B box header (Gen2) [WM646-ADS-R680E] 2 x USB 2.0 (2.54mm pitch, Colay vertical Type A, opt.: MOQ required) [WM646-ADS-R680E] 1 x USB 2.0 Vertical Type A [WM646-ADS-Q670E] 2 x USB 3.2 Gen2 Key B box header (Gen1) [WM646-ADS-Q670E] 2 x USB 2.0 (2.54mm pitch, Colay vertical Type A, opt.: MOQ required) [WM646-ADS-Q670E] 1 x USB 2.0 Vertical Type A
- Audio
- 1 x Front Audio Header 1 x S/PDIF
- SATA
- 4 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10
- DIO
- 1 x 8-bit DIO
- SMBus
- 1 x SMBus
- PS/2
- 1 x PS/2 (2.54mm pitch)
Cooling
- Fan
- Front: 1 x 12cm Fan (Door with Filter) Rear: 1 x 8cm Fan
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Power
- Supply
- Flex ATX 350W / 400W / 500W / 650W 150x81.5x40.5mm
OS Support
- Microsoft
- Windows 10 Windows 11
- Linux
- Linux (Ubuntu)
Environment
- Operating Temperature
- 0 to 45°C
- Storage Temperature
- 0 to 60°C
- Relative Humidity
- 5 to 95% RH (non-condensing)
Mechanism
- Construction
- Sheet metal, SGCC
- Mounting
- Wall mount (Optional Wall mount kits)
- Dimensions (W x H x D)
- 332.0 x 345.50 x 173.0 mm 12.67" x 13.60" x 6.82"
- Weight
- 6.9 kg
- Color
- Black
Standards and Certifications
- Shock
- Operating: 3G Non-operating: 5G
- Vibration
- Operating: Random 5~500Hz 0.5G Non-operating: Sine 10~500Hz 1.5G
- Package Drop
- ISTA Project 1A
- Certifications
- CE, FCC Class A, RoHS
Country of Origin
- Country of Origin
- Taiwan
