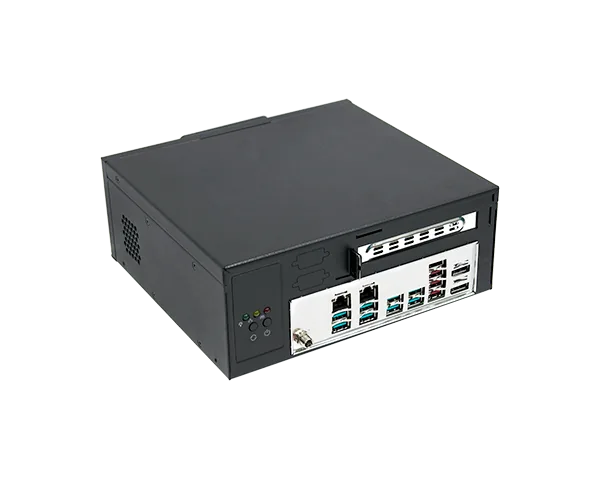

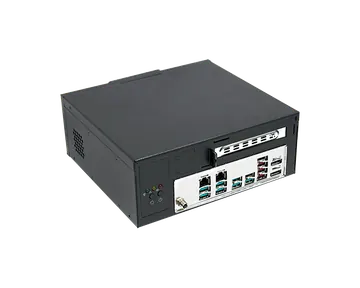

WM120-CMS171/CMS173
Industrial Desktop Computer, Wallmount Box PC, 10th Gen Intel® Core™, DDR4, 1 PCIe x16, 1 M.2 M key, 1 M.2 E key, 1 M.2 B key, 2 DP++, 2 Lan, 8 USB 3.2 Gen2, 4 USB 3.2
- Industrial-grade desktop computer
- Rich I/O connectivity: 2 Intel GbE, 8 USB 3.2 Gen2, 4 USB 3.2, 2 DP++
- Multiple Expansion: 1 PCIe x16, 1 M.2 M key, 1 M.2 E key, 1 M.2 B key
- Support 5G-NR & WiFi 6 module
- 15-Year CPU Life Cycle Support Until Q2' 34 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#Intel
#4K2K Display
#1G Ethernet
#PCIe x16
#Windows
#Multiple Expansion
#DDR4
#RoHS Certification
#UL Certification
#CE Certification
#FCC Certification
#UL-US Certification
#Material Handling
#SCARA
#10th Gen Intel® Comet Lake Processor
#UKCA Certification
Főbb jellemzőkKey features
- Industrial-grade desktop computer
- Rich I/O connectivity: 2 Intel GbE, 8 USB 3.2 Gen2, 4 USB 3.2, 2 DP++
- Multiple Expansion: 1 PCIe x16, 1 M.2 M key, 1 M.2 E key, 1 M.2 B key
- Support 5G-NR & WiFi 6 module
- 15-Year CPU Life Cycle Support Until Q2' 34 (Based on Intel IOTG Roadmap)
System
- Processor
- 10th Gen Intel® Xeon/Core™/Pentium/Celeron Processors, LGA 1200 Socket Intel® Core i7-10700E Processor (Core 8; Max speed 4.5GHz; TDP 65W) Intel® Core i7-10700TE Processor (Core 8; Max speed 4.4GHz; TDP 35W) Intel® Core i5-10500E Processor (Core 6; Max speed 4.2GHz; TDP 65W) Intel® Core i5-10500TE Processor (Core 6; Max speed 3.7GHz; TDP 35W) Intel® Core i3-10100E Processor (Core 4; Max speed 3.8GHz; TDP 65W) Intel® Core i3-10100TE Processor (Core 4; Max speed 3.6GHz; TDP 35W) Intel® Pentium G6400E Processor (Core 2; Max speed 3.8GHz; TDP 65W) Intel® Pentium G6400TE Processor (Core 2; Max speed 3.2GHz; TDP 35W) Intel® Celeron G5900E Processor (Core 2; Max speed 3.2GHz; TDP 65W) Intel® Celeron G5900TE Processor (Core 2; Max speed 3.0GHz; TDP 35W)
- Chipset
- Intel® Q470E Chipset
- Memory
- DDR4 32GB
- BIOS
- AMI SPI 128Mbit
Graphics
- Controller
- Intel® HD Gen 9 Graphics
- Feature
- OpenGL 4.5, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
- Display
- 2 x DP++ DP1.2: resolution up to 4096x2304@60Hz
- Dual Displays
- 2 x DP++
Storage
- Internal
- 1 x 2.5" SATA 3.0 1TB SSD 1 x M.2 2280 M Key (PCIe x4/SATA) (support NVMe and Intel® Optane memory)
Expansion
- Interface
- 1 x PCIe x16 (Gen3 x8signal, Option) 1 x M.2 2230 E key (PCIe/USB 2.0/Intel CNVi support) for WiFi6 1 x M.2 2280 M key (PCIe x4 Gen3 NVMe/SATA/Intel Optane Memory support) for SSD 1 x M.2 3042/3052 B key (PCIe/USB3.0) for 4G LTE/5G with SIM holder Note, 65W CPU config. does not support expansion card. 35W CPU config. supports one expansion card via riser card
Audio
- Audio Codec
- Realtek ALC888
Ethernet
- Controller
- 1 x Intel® I219LM PHY with iAMT12 and vPro (10/100/1000Mbps) (Core i7/i5 supports iAMT) 1 x Intel® I211AT PCIe (10/100/1000Mbps)
LED
- Indicators
- 1 x Power LED 1 x HDD LED

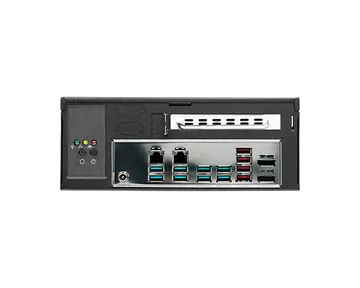

I/O
- Ethernet
- 2 x GbE (RJ-45)
- USB
- 8 x USB 3.2 Gen2 4 x USB 3.2
- Display
- 2 x DP++
- Buttons
- 1 x Power button 1 x Reset button
Cooling
- Fan

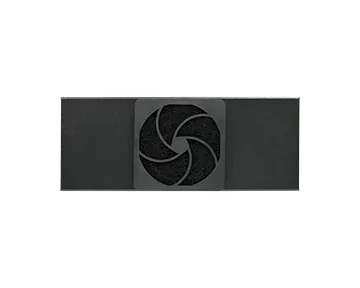

- 1 x 8cm System Fan, with replaceable air filter
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- Infineon TPM1.2/2.0 (optional)
Power
- Type
- Lockable DC jack, co-lay with 4pin connector [WM120-CMS171] 12VDC in [WM120-CMS173] 15V to 36VDC in
- Connector
- DC-in Jack
- Consumption
- Idle: i7-10700E 65W: 19V @ 0.98A (18.62W) Max: i7-10700E 65W: 19V @ 9.8A (186.2W)
- Supply
- CR2032 Coin Cell
OS Support
- Microsoft
- Windows 10 IoT Enterprise 2019
Environment
- Operating Temperature
- -5° to 45° C
- Storage Temperature
- -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery
- Relative Humidity
- 5 to 95% RH (non-condensing)
Mechanism
- Construction
- Sheet Metal
- Mounting
- Wall mount
- Dimensions (W x H x D)
- 224 x 88 x 206mm
- Weight
- 2.47kg
- Color
- Black
Standards and Certifications
- Shock
- Operating: 3G Non-operating: 5G
- Vibration
- Operating: 1G Non-operating: 3G
- Package Drop
- ISTA Project 1A
- Certifications
- CE, FCC Class A, UL, RoHS (To be applied), UKCA
Packing List
- Packing List
- 1 WM120-CMS System Unit 1 CPU Cooler (65W) 1 SATA data with power cable (7 + 15P) (Length: 220mm) 4 HDD Screws 1 System Fan
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| WM120-CMS171 | 750-WM1200-000G | WM120-CMS: CMS171-Q470, Mini-ITX Wallmount System, 12VDC in, F/G System RoHS |
| WM120-CMS173 | 750-WM1200-100G | WM120-CMS, CMS173-Q470, Mini-ITX Wallmount System, 15 to 36VDC in, F/G System RoHS |
| Item Name | Part Number | Description |
|---|---|---|
| 1 COM port cable | A81-015011-001G | Length: 250mm, 1 x COM port |
| USB 2.0 port cable | A81-001066-016G | Length: 350/398mm |
| USB 3.1 Gen1 port cable | A81-001052-023G | Length: 320mm |
| USB 3.2 Gen2 port cable | A81-001075-017G | Length: 350mm |
| DP to HDMI Dongle | 612-D2H13M-000G |
