SF101-ADS
Desktop Box IPC, 14th/13th/12th Gen Intel® Core™, DDR4, 2 DP++, 1 1.3" Front LCD, 1 M.2 E Key, 1 M.2 M Key, 1 M.2 B Key, RAID/NVME, 1 2.5GbE, 1 GbE, 4/6 USB 3.2 Gen2, 2 USB 2.0, 2 COM, 1 Grounding Post, -5°C ~ 45°C
- 14th/13th/12th Generation Intel® Core™ Processors TDP 35W
- 2 DDR4 3200MHz SODIMM up to 64GB
- Dual Displays: 2 DP++
- 3 M.2 expansions
- Front 1.3" Touch LCD showing Local System Information (opt.)
- 2 NVME SSD for RAID0/1 + 1x 2.5" SATA storage (opt. 2nd NVME SSD)
- Operating temperature : -5 to 45°C
Főbb jellemzők
Tanúsítványok
#12th Gen Intel® Core™ Processor
#ADS Series
#13th Gen Intel® Core™ Processor
#M.2
#15~36V DC-in
#Out-Of-Band (OOB)
#14th Gen Intel® Core™ Processor
#IoT
#Intel
#Compact PC
#Compact Size
#Windows
#Linux
#DP
#Multiple Expansion
#DDR4
#RoHS Certification
#CE Certification
#FCC Certification
#2.5G Ethernet
#UKCA Certification
Főbb jellemzőkKey features
- 14th/13th/12th Generation Intel® Core™ Processors TDP 35W
- 2 DDR4 3200MHz SODIMM up to 64GB
- Dual Displays: 2 DP++
- 3 M.2 expansions
- Front 1.3" Touch LCD showing Local System Information (opt.)
- 2 NVME SSD for RAID0/1 + 1x 2.5" SATA storage (opt. 2nd NVME SSD)
- Operating temperature : -5 to 45°C
System
- Processor
- 14th Generation Intel® LGA 1700 Socket Processors, TDP support up to 35W Intel® Core™ I9-14900T (24 Cores, 36M Cache, up to 5.5 GHz); 35W Intel® Core™ I7-14700T (20 Cores, 33M Cache, up to 5.2 GHz); 35W Intel® Core™ I5-14500T (14 Cores, 24M Cache, up to 4.8 GHz); 35W Intel® Core™ I5-14400T (10 Cores, 20M Cache, up to 4.5 GHz); 35W Intel® Core™ I3-14100T (4 Cores, 12M Cache, up to 4.4 GHz); 35W 13th Generation Intel® LGA 1700 Socket Processors, TDP support up to 35W Intel® Core™ I9-13900TE (24 Cores, 36M Cache, up to 5.0 GHz); 35W Intel® Core™ I7-13700TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W Intel® Core™ I7-13700T (16 Cores, 30M Cache, up to 4.9 GHz); 35W Intel® Core™ I5-13500TE (14 Cores, 24M Cache, up to 4.5 GHz); 35W Intel® Core™ I5-13500T (14 Cores, 24M Cache, up to 4.6 GHz); 35W Intel® Core™ I3-13100TE (4 Cores, 12M Cache, up to 4.1 GHz); 35W Intel® Core™ I3-13100T (4 Cores, 12M Cache, up to 4.2 GHz); 35W 12th Generation Intel® LGA 1700 Socket Processors, TDP support up to 35W Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.6 GHz); 35W Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W Intel® Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W Intel® Pentium® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W Intel® Celeron® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W
- Chipset
- Intel® R680E Chipset
- Memory
- Two 260-pin SODIMM up to 64GB (ECC/Non-ECC) Dual Channel DDR4 3200 MHz
- BIOS
- AMI SPI 128Mbit
Graphics
- Controller
- Intel® UHD Graphics 700 series
- Feature
- OpenGL 4.5, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
- Display
- 2 x DP++ 1 x 1.3" Front Capacitive Touch LCD (opt.)
Storage
- External/Internal
- 1 x 2.5" SATA bay 1 x M.2 2280 M Key (PCIe Gen4 x4/SATA) RAID 0/1
Expansion
- Interface
- 1 x M.2 2230 E Key (USB/PCIe x1) 1 x M.2 2280 M Key (PCIe Gen4 x4/SATA) 1 x M.2 2242/3042/3052 B Key (PCIe Gen3 x1/SATA/USB 3.2 Gen2/USB 2.0)
Audio
- Audio Codec
- Realtek ALC888S-VD2-GR
Ethernet
- Controller
- 1 x Intel® I226V PCIe(10/100/1000/2.5G speeds) 1 x Intel® I219LM PHY(10/100/1000 speeds) (support vPro/AMT)
LED
- Indicators
- 1 x Power LED 1 x HDD LED

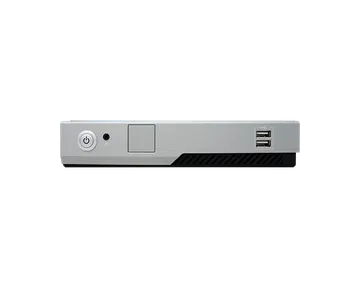

Front I/O
- USB
- 2 x USB 2.0
- Buttons
- 1 x Power Button

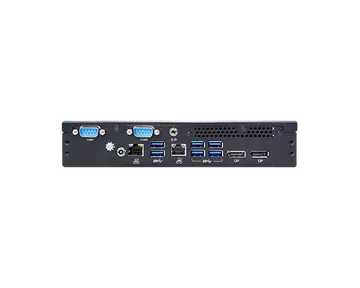

Rear I/O
- Ethernet
- 1 x 2.5GbE (RJ45, LAN1) 1 x GbE (RJ45, LAN2)
- Serial
- 2 x COM
- USB
- 6 x USB 3.2 Gen2
- Display
- 2 x DP++
- Audio
- 1 x line-out
- Grouding
- 1 x Grounding Post
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- dTPM2.0
Power
- Type
- DC 15~36V
- Connector
- DC Jack
- RTC Battery
- CR2032 Coin Cell
OS Support
- Microsoft
- Windows 10 IoT
- Linux
- Linux
Environment
- Temperature
- Operating: -5°C ~ 45°C Storage: -40°C ~ 85°C
- Humidity
- Operating: 5% ~ 90% RH Storage: 5% ~ 90% RH
Mechanism
- Compliance
- Metal chassis + Aluminum front bezel
- Mounting
- Wall mount Rackmount
- Dimensions (W x H x D)
- 220 x 43 x 197.2mm
- Weight
- 2.55kg
Standards and Certifications
- Shock
- Operating: 3G Non-operating: 5G
- Vibration
- Operating: Random 5~500Hz 1G Non-operating: Sweep Sine 10~500Hz 1.5G
- Package Drop
- ISTA Project 1A
- Certifications
- CE, FCC class A, RoHS, UKCA
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| SF101-ADS | 750-SF1011-000G | ADS103-R680, i7-12700TE, 1DP++, 1 DP++/HDMI, 2 LAN, 6 USB 3.2 Gen2, no LCD, 15~36V DC-IN w/ TPM2.0(dTPM), F/G System, RoHS |
| Item Name | Part Number | Description |
|---|---|---|
| Mounting Kit | A31-028Q25-100G 761-SF1011-051G | Wallmount Brackets 2in1 Rackmount Brackets & cabinet screw kits. |
