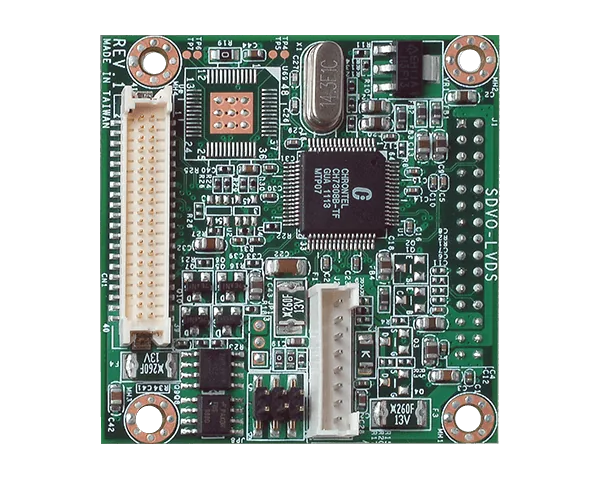

SDVO-LVDS
Module Boards
- Module Boards
- CHIP: Chrontel CH7308B
- PORT: 1 LVDS
- Dimensions: 45mm x 38mm (1.77" x 1.49")
#Windows
Főbb jellemzőkKey features
- Module Boards
- CHIP: Chrontel CH7308B
- PORT: 1 LVDS
- Dimensions: 45mm x 38mm (1.77" x 1.49")
Specifications
- Features
- CHIP: Chrontel CH7308B LVDS transmitter chip Features: Single/Dual LVDS transmitter up to 165Mpixels/s LVDS low jitter PLL accepts spread spectrum input Supports 18/24-bit 1600x1200 LVDS panel Supports dimming control via hot-keys 2D dither engine Panel protection and power sequencing High-speed SDVO I serial (1G~2Gbps) ACcoupled differential RGB inputs Low voltage interface supports graphics device Programmable power management Fully programmable through OpCodes I Supports complete Windows driver Supports boundary scan TEMPERATURE: 0°C to 60°C DIMENSIONS: 45mm (1.77") x 38mm (1.49")
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
Rendelési információért vedd fel velünk a kapcsolatot.Please contact us for ordering information.
