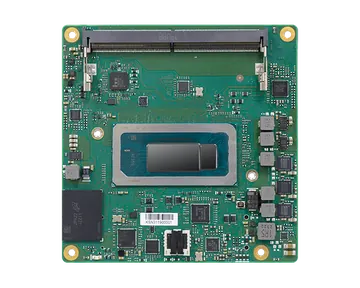

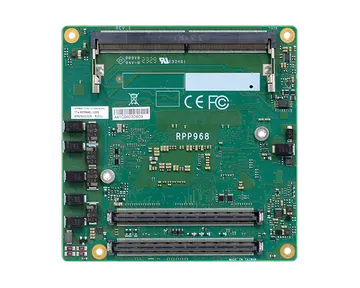

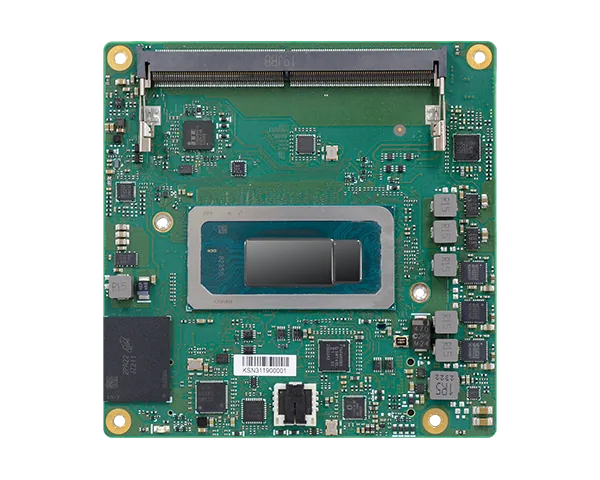

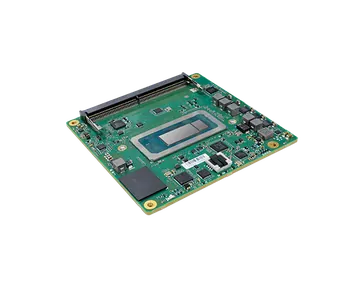

RPP968
COM Express Type 6, 13th Gen Intel® Processor, DDR5, 2 PCIe x4, 5 PCIe x1, 1 I2C, 1 SMBus, 1 Intel 2.5GbE, 4 USB 3.2, 8 USB 2.0, 2 SATA 3.0, 1 VGA, 1 LVDS/eDP, 3 DDI
- Intel® Core® Processor Raptor Lake Series
- DDR5 5200MHz SODIMM up to 64GB
- 1 LVDS/eDP, 1 VGA, 3 DDI (HDMI/DP++)
- Multiple expansions: 2 PCIe x4 (Gen4 PCH), 5 PCIe x1
- Rich I/O: 1 Intel GbE, 4 USB 3.2, 8 USB 2.0
- 15-Year CPU Life Cycle Support Until Q1' 38 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#DDR5
#13th Gen Intel® Core™ Processor
#LVDS
#Edge AI Computing
#eDP
#SMBus
#I2C
#Intel® Core® Processor Raptor Lake Series
#Slim Bootloader
#IoT
#Intel
#4K2K Display
#Windows
#Linux
#HDMI
#VGA
#DP
#Multiple Expansion
#RoHS Certification
#CE Certification
#FCC Certification
#2.5G Ethernet
#UKCA Certification
Főbb jellemzőkKey features
- Intel® Core® Processor Raptor Lake Series
- DDR5 5200MHz SODIMM up to 64GB
- 1 LVDS/eDP, 1 VGA, 3 DDI (HDMI/DP++)
- Multiple expansions: 2 PCIe x4 (Gen4 PCH), 5 PCIe x1
- Rich I/O: 1 Intel GbE, 4 USB 3.2, 8 USB 2.0
- 15-Year CPU Life Cycle Support Until Q1' 38 (Based on Intel IOTG Roadmap)
System
- Processor
- Intel® Core™ i7-13800HE (6 P-Cores x 2.5 GHz, 8 E-Cores x 1.8 GHz, 24 MB cache, 45W) Intel® Core™ i5-13600HE (4 P-Cores x 2.7 GHz, 8 E-Cores x 1.9 GHz, 18 MB cache, 45W) Intel® Core™ i3-13300HE (4 P-Cores x 2.1 GHz, 4 E-Cores x 1.5 GHz, 12 MB cache, 45W) Intel® Core™ i7-1370PE (6 P-Cores x 1.9 GHz, 8 E-Cores x 1.2 GHz, 24 MB cache, 28W) Intel® Core™ i5-1350PE (4 P-Cores x 1.8 GHz, 8 E-Cores x 1.3 GHz, 12 MB cache, 28W) Intel® Core™ i5-1340PE (4 P-Cores x 1.8 GHz, 8 E-Cores x 1.3 GHz, 12 MB cache, 28W) Intel® Core™ i3-1320PE (4 P-Cores x 1.7 GHz, 4 E-Cores x 1.2 GHz, 12 MB cache, 28W) Intel® Core™ i7-1365UE (2 P-Cores x 1.7 GHz, 8 E-Cores x 1.2 GHz, 12 MB cache, 15W) Intel® Core™ i5-1345UE (2 P-Cores x 1.4 GHz, 8 E-Cores x 1.1 GHz, 12 MB cache, 15W) Intel® Core™ i5-1335UE (2 P-Cores x 1.2 GHz, 8 E-Cores x 0.9 GHz, 12 MB cache, 15W) Intel® Core™ i3-1315UE (2 P-Cores x 1.2 GHz, 4 E-Cores x 0.9 GHz, 10 MB cache, 15W) Intel® Pentium® U300E (1 P-Core x 1.1 GHz, 4 E-Cores x 0.9 GHz, 8 MB cache, 15W)
- Memory
- Two 262-Pin SO-DIMM up to 64GB, Dual Channel DDR5 5200MHz
- BIOS
- AMI BIOS
Graphics
- Controller
- Intel® Iris® Xe graphics
- Feature
- OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: WMV9, AVC/H264, JPEG/MJPEG, HEVC/H265, VP9, AV1 HW Encode: AVC/H264, JPEG, HEVC/H265, VP9
- Display
- 1 x VGA 1 x LVDS/eDP (eDP available upon request) 3 x DDI VGA: resolution up to 1920x1200 @ 60Hz LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz eDP: resolution up to 4096x2304 @ 60Hz HDMI: resolution up to 4096x2160 @ 30Hz DP++: resolution up to 4096x2304 @ 60Hz
- Triple Displays
- VGA + LVDS + DDI DDI + eDP + DDI (available upon request)
Expansion
- Interface
- 2 x PCIe x4 (Gen4 CPU) 5 x PCIex1 (Gen3) (8 x PCIex1 available upon request) 1 x I2C 1 x SMBus 1 x SPI 2 x UART (TX/RX)
Audio
- Interface
- HD Audio
Ethernet
- Controller
- 1 x Intel® I226 series (10/100/1000Mbps/2.5G), co-lay PCIe x1 (available upon request)
I/O
- USB
- 4 x USB 3.2 Gen.2 8 x USB 2.0
- SATA
- 2 x SATA 3.0 (up to 6Gb/s), co-lay PCIe x1 (available upon request)
- SSD
- 1 x 64GB/128GB/256GB/512GB/1024GB on board SSD (available upon request)
- DIO
- 1 x 8-bit DIO
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- Available Upon Request
Power
- Type
- 8.5~20V, 5VSB, VCC_RTC (ATX mode) 8.5~12V, VCC_RTC (AT mode)
- Consumption
- TBD
OS Support
- Microsoft
- Windows 10 IoT Enterprise 64-bit
- Linux
- Linux
Environment
- Temperature
- Operating: 0 to 60°C, -40 to 85°C Storage: -40 to 85°C
- Humidity
- Operating: 10 to 90% RH Storage: 10 to 90% RH
- MTBF
- TBD
Mechanism
- Dimensions
- COM Express® Compact 95mm (3.74") x 95mm (3.74")
- Compliance
- PICMG COM Express® R3.1, Type 6
Standards and Certifications
- Certifications
- CE, FCC, RoHS, UKCA
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| RPP968-BC00-13800HE | 770-RPP9681-000G | Intel® Core™ I7-13800HE (45W), LVDS, Cooler, TPM 2.0, Operating Temp.: 0 to 60°C |
| RPP968-TC06-1370PE | 770-RPP9681-100G | Intel® Core™ I7-1370PE (28W), LVDS, TPM 2.0, Cooler, Operating Temp.: -40 to 85°C |
| RPP968-TC00-1365UE | 770-RPP9681-200G | Intel® Core™ I7-1365UE (15W), LVDS, TPM 2.0, Cooler, Operating Temp.: -40 to 85°C |
| RPP968-BC00-13800HRE | 770-RPP9681-300G | Intel® Core™ I7-13800HRE (45W), eDP, TPM 2.0, Cooler, Operating Temp.: 0 to 60°C |
| RPP968-TC00-1315UE | 770-RPP9681-400G | Intel® Core™ I3-1315UE (15W), LVDS, TPM 2.0, Cooler, Operating Temp.: -40 to 85°C |
| RPP968-TC00-U300E | 770-RPP9681-500G | Intel® Pentium® U300E (15W), LVDS, TPM 2.0, Cooler, Operating Temp.: -40 to 85°C |
| RPP968-TC00-1345UE | 770-RPP9681-600G | Intel® Core™ i5-1345UE (28W), LVDS, TPM 2.0, Cooler, Operating Temp.: -40 to 85°C |
| RPP968-TC00-1350PE | 770-RPP9681-700G | Intel® Core™ i5-1350PE (28W), LVDS, TPM 2.0, Cooler, Operating Temp.: -40 to 85°C |
| Item Name | Part Number | Description |
|---|---|---|
| COM335 carrier board kit | 770-CM3351-000G | |
| Heat spreader | A71-808365-000G |
