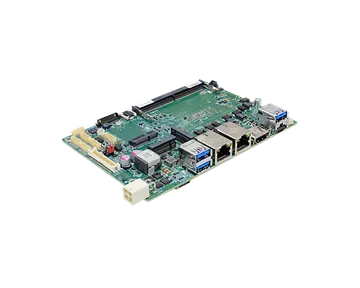

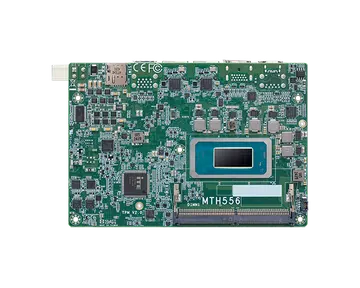

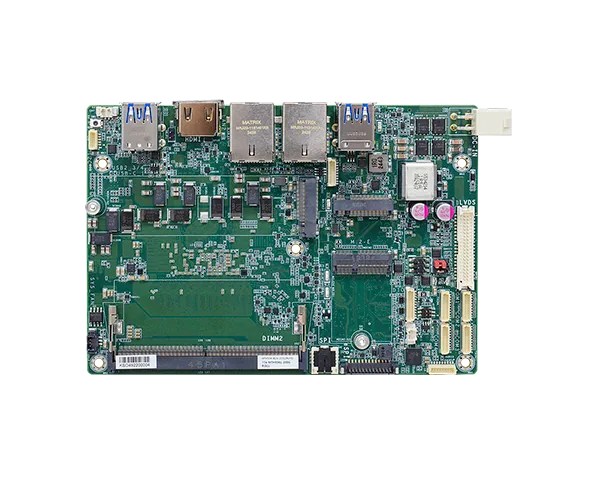

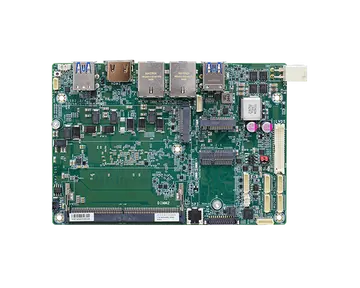

MTH556
3.5" SBC, Intel® Core™ Ultra Processor, 2 DDR5, 1 M.2 M Key, 1 M.2 B Key, 1 M.2 E Key, 1 SIM Slot, 1 HDMI, 1 LVDS, 1 USB-C DP Alt. mode, 2 2.5GbE, 4 COM, 4 USB 3.2, 1 USB-C, TPM 2.0, 9~36V DC, -5 to 65°C
- Intel® Core™ Ultra Processor
- 2 DDR5-5600 SODIMM up to 96GB
- 4K High Resolution: Supports 4K/ 2K resolution
- Triple Independent Displays: 1 HDMI, 1 LVDS, 1 USB-C DP Alt. mode
- Multiple Expansion: 1 M.2 M Key, 1 M.2 B Key, 1 M.2 E Key
- Rich I/O: 2 2.5GbE, 4 COM, 4 USB 3.2, 1 USB-C
Főbb jellemzők
Tanúsítványok
#DDR5
#Windows 10
#9~36V DC-in
#LVDS
#USB Type-C DP
#Intel® Core™ Ultra processors
#IoT
#Windows 11
#Intel
#SIM Slot
#4K2K Display
#Windows
#Linux
#HDMI
#Multiple Expansion
#RoHS Certification
#CE Certification
#FCC Certification
#KC Certification
#2.5G Ethernet
#UKCA Certification
Főbb jellemzőkKey features
- Intel® Core™ Ultra Processor
- 2 DDR5-5600 SODIMM up to 96GB
- 4K High Resolution: Supports 4K/ 2K resolution
- Triple Independent Displays: 1 HDMI, 1 LVDS, 1 USB-C DP Alt. mode
- Multiple Expansion: 1 M.2 M Key, 1 M.2 B Key, 1 M.2 E Key
- Rich I/O: 2 2.5GbE, 4 COM, 4 USB 3.2, 1 USB-C
System
- Processor
- Intel® Core™ Ultra Processors, TDP up to 28W (Code Name: Meteor Lake) Intel® Core™ Ultra 7 165H, 16C, 24M Cache, 1.4GHz (5.0GHz) Intel® Core™ Ultra 5 135H, 14C, 18M Cache, 1.7GHz (4.6GHz) Intel® Core™ Ultra 7 155U, 12C, 12M Cache, 1.7GHz (4.8GHz) Intel® Core™ Ultra 5 125U, 12C, 12M Cache, 1.3GHz (4.3GHz) (Code Name: Arrow Lake) Intel® Core™ Ultra 7 255U, 12C, 12M Cache, 2.0GHz (5.2GHz) Intel® Core™ Ultra 5 225U, 12C, 12M Cache, 1.5GHz (4.8GHz)
- Memory
- Two 262-Pin DDR5-5600 SO-DIMM up to 96GB
- BIOS
- AMI SPI 256Mbit
Graphics
- Controller
- 165H/135H: Intel® Arc™ Graphics 255U/225U/155U/125U: Intel® Graphics
- Feature
- OpenGL 4.6, Direct X 12.1, OpenCL 3.0 HW Decode: HEVC, VP9, AV1, AVC HW Encode: HEVC, VP9,AV1, AVC
- Display
- 1 x HDMI 1.4b 1 x LVDS 1 x USB-C DP Alt. mode HDMI: resolution up to 4096x2160@24Hz LVDS: dual channel 24-bit, resolution up to 1920x1200@60Hz DP: resolution up to 4096x2304@60Hz
- Triple Displays
- HDMI + LVDS + USB-C DP Alt. mode
Expansion
- Interface
- 1 x M.2 M key 2280 (PCIe Gen4 x4) 1 x M.2 B key 3052(USB 3.0/2.0, PCIe Gen4 x1, SATA), 1 x SIM slot for 4G/5G 1 x M.2 E key 2230 (USB 2.0/PCIe Gen4 x1)
Ethernet
- Controller
- 2 x Intel® I226V/I226LM (10/100/1000/2500Mbps)

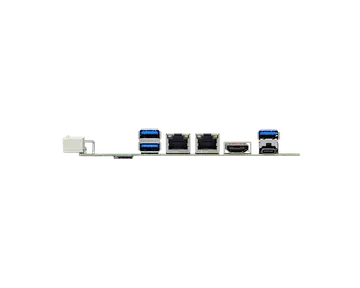

Front I/O
- Ethernet
- 2 x 2.5GbE (RJ-45)
- USB
- 3 x USB 3.2 Gen2 x1 (Type A) 1 x USB 3.2 Gen2 x2 (Type C)
- Display
- 1 x HDMI 1 x USB-C DP Alt. Mode
Internal I/O
- Serial
- 2 x RS-232/422/485 2 x RS-232 (1.0mm pitch)
- USB
- 2 x USB 2.0 (1.0mm pitch)
- Audio
- 1 x Audio (Line_out/Mic_in)
- DIO
- 1 x 8-bit DIO (4 in, 4 out)
- Fan
- 1 x Smart Fan (3-pin, 12V)
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- TPM 2.0
Power
- Type
- 9~36V DC
- Connector
- Right Angle Connector (ATX 4-pin) Vertical connector (ATX 4-pin) (available upon request)
- Consumption
- Typical: 165H (28W), 36V @ 0.31A (11.16W) Max: 165H (28W), 36V @ 2.37A (85.32W) Typical: 265U (15W), 36V @ 0.29A (10.44W) Max: 265U (15W), 36V @ 2.19A (78.84W)
- RTC Battery
- CR2032 Coin Cell (Cable type)
OS Support
- Microsoft
- Windows 11 & 10 IoT Enterprise 64-bit
- Linux
- Linux
Environment
- Temperature
- Operating: -5 to 65°C or -20 to 70°C (15W CPU only) Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- 379,660 hrs @ 25°C; 171,659 hrs @ 45°C; 78,131 hrs @ 60°C; 44,593 hrs @ 70°C Calculation Model: Telcordia Issue 4 Environment: GB, GC - Ground Benign, Controlled
Mechanism
- Dimensions
- 3.5" SBC Form Factor 146mm (5.75") x 102mm (4.02")
- Height
- PCB: 1.6mm
Standards and Certifications
- Certifications
- CE, FCC Class B, RoHS, UKCA, KC
Packing List
- Packing List
- • 1 MTH556 board • Cooler, A71-108309-020G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| MTH556-BCN-165H | 770-MTH5561-000G | Intel® Core™ Ultra 7 165H, 16 cores, 28W, HDMI + LVDS + USB- C DP, 2 2.5GbE(RJ-45), 4 COM, 4 USB 3.2, 9~36 VDC, Operating Temp.: -5~65°C |
| MTH556-BCN-135H | 770-MTH5561-100G | Intel® Core™ Ultra 5 135H, 14 cores, 28W, HDMI + LVDS + USB- C DP, 2 2.5GbE(RJ-45), 4 COM, 4 USB 3.2, 9~36 VDC, Operating Temp.: -5~65°C |
| MTH556-ECN-155U | 770-MTH5561-200G | Intel® Core™ Ultra 7 155U, 12 cores, 15W, HDMI + LVDS + USB- C DP, 2 2.5GbE(RJ-45), 4 COM, 4 USB 3.2, 9~36 VDC, Operating Temp.: -20~70°C |
| MTH556-ECN-125U | 770-MTH5561-300G | Intel® Core™ Ultra 5 125U, 12 cores, 15W, HDMI + LVDS + USB- C DP, 2 2.5GbE(RJ-45), 4 COM, 4 USB 3.2, 9~36 VDC, Operating Temp.: -20~70°C |
| MTH556-ECN-255U | 770-MTH5561-400G | Intel® Core™ Ultra 7 255U, 12 cores, 15W, HDMI + LVDS + USB- C DP, 2 2.5GbE(RJ-45), 4 COM, 4 USB 3.2, 9~36 VDC, Operating Temp.: -20~70°C |
| MTH556-ECN-225U | 770-MTH5561-500G | Intel® Core™ Ultra 5 225U, 12 cores, 15W, HDMI + LVDS + USB- C DP, 2 2.5GbE(RJ-45), 4 COM, 4 USB 3.2, 9~36 VDC, Operating Temp.: -20~70°C |
| Item Name | Part Number | Description |
|---|---|---|
| 4-pin power to DC jack cable | A81-004051-016G | Length: 100mm |
| 1 COM port cable | A81-015130-018G | Length: 250mm, 1x COM port |
| USB 2.0 cable | A81-001201-018G | Length: 200mm, 2 USB ports |
| Front panel cable | A81-020047-016G | Length: 250mm |
| Audio cable | A81-022043-054G | Length: 200mm |
| Heat spreader | A71-808372-000G | Available upon request, MOQ 50pcs |
