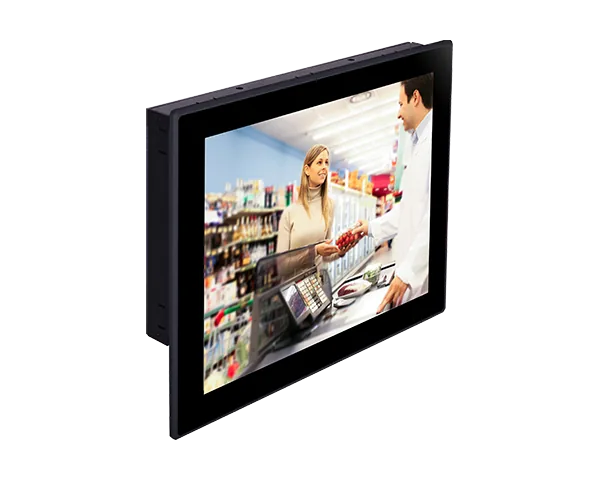

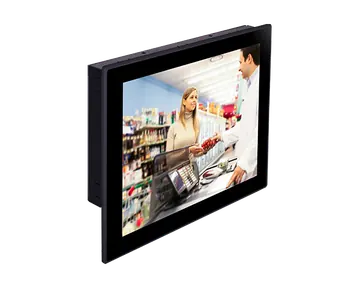

KS150-BT
The industrial panel pc KS150-BT is available in both 5-wire resistive and projected capacitive 15” LCD true-flat touch screen panel. This All-in-One system is equipped with two DDR3L SODIMM sockets with up to 8GB memory, one 2.5” SATA drive bay, two LAN ports, four COM ports, three USB ports. Users can also benefit from two mounting options: wall mount (VESA 75x75 or 100x100) or panel mount. Most important of all, the 15” touch panel PC can withstand operating temperatures from -10°C to 60°C; that can also be applied to outdoor environments. Thanks to this robust design and features, the KS150-BT is the perfect solution for a variety of solutions, especially for retail applications.
- 15" 1024x768 Intel Atom® E3800 Touch Panel PC
- 1x 2.5" SATA drive bay
- IP65 Front Panel Protection
- VESA/Wall/Panel Mount
- Wide operating temperature: -10~60°C
- 15-Year CPU Life Cycle Support Until Q4' 28 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#Intel
#Mini PCIe
#Fanless Design
#IP65 Front Panel Protection
#Windows
#Linux
#DVI-I
#DDR3L
#Low Power Consumption
#RoHS Certification
#CE Certification
#FCC Certification
Főbb jellemzőkKey features
- 15" 1024x768 Intel Atom® E3800 Touch Panel PC
- 1x 2.5" SATA drive bay
- IP65 Front Panel Protection
- VESA/Wall/Panel Mount
- Wide operating temperature: -10~60°C
- 15-Year CPU Life Cycle Support Until Q4' 28 (Based on Intel IOTG Roadmap)
System
- Processor
- Intel Atom® E3845, Quad Core, 2M Cache, 1.91GHz, 10W Intel Atom® E3825, Dual Core, 1M Cache, 1.33GHz, 6W BGA 1170 packaging technology 22nm process technology
- Memory
- Two 204-pin SODIMM up to 8GB (E3845) Dual Channel DDR3L 1333MHz One 204-pin SODIMM up to 4GB (E3825) Single Channel DDR3L 1066MHz
- BIOS
- AMI SPI 64Mbit
Display and Touch Screen
- Display
- 15" 1024x768 TFT LCD Panel with Capacitive/5-wire Resistive Touch Screen
- Brightness
- 250 cd/m²
- View Angle
- 160° / 140°
- Backlight Lifetime
- 50,000 MTBF LED Backlight
Graphics
- Controller
- Intel® HD Graphics
- Display
- 1 x DVI-I DVI-I: resolution up to 1920x1080 @ 60Hz
- Single Display
- 1 x DVI-I
Storage
- External/Internal
- 1 x 2.5" SATA 2.0 Drive Bay
Expansion
- Interface
- 1 x Full-size Mini PCIe (PCIe/USB/SATA)
Audio
- Audio Codec
- Realtek ALC888 5.1-channel
Ethernet
- Controller
- 2 x Intel® I210 PCIe (10/100/1000Mbps)

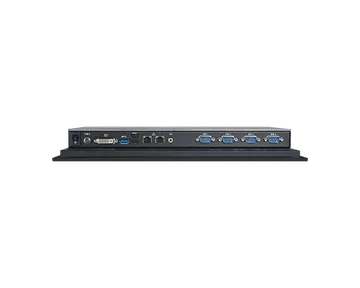

Bottom I/O
- Ethernet
- 2 x GbE (RJ-45)
- Serial
- 3 x RS-232/422/485 (RS232 and/or power) (DB-9) 1 x RS-232 (DB-9)
- USB
- 1 x USB 3.0 2 x USB 2.0
- Display
- 1 x DVI-I
- Audio
- 1 x Line-out
- Buttons
- 1 x Power Switch
Power
- Type
- 12V DC
- Connector
- DC Jack
OS Support
- OS Support
- Windows 7 Windows 8 Linux (Project base upon request only, with 3 months lead time)
Environment
- Operating Temperature
- -10°C ~ 60°C (with SSD) 0°C ~ 45°C (with HDD)
- Storage Temperature
- -20°C ~ 70°C
- Relative Humidity
- 85% RH at 60°C (with SSD) 85% RH at 45°C (with HDD)
Mechanism
- Construction
- Aluminum Front Bezel Rear Panel: Aluminum and SGCC
- IP Rating
- IP65 Front Panel Protection
- Mounting
- Wall Mount (VESA 75x75 or 100x100) Panel Mount (mounting clamp)
- Dimensions (W x H x D)
- 373mm x 297mm x 46.10mm (W x H x D)
- Weight
- 3.8 kg
Standards and Certifications
- Shock
- Operating: 3G Peak Acceleration Non-operating: 5G Peak Acceleration
- Vibration
- Operating: 1G, 5~500Hz Non-operating: 3G, 10~500Hz
- Certifications
- CE, FCC Class A, RoHS
Packing List
- Packing List
- 1 KS150-BT Touch Panel PC 1 Poron foam 1 Chassis Panel Mount Bracket 1 Quick Installation Guide Note: Please choose "KS150-BT product page > Download button" to download the Driver and Manual.
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
- KS150-BT Datasheet (PDF)
- DFI Complete Product line based on the latest Intel Atom Processor E3800 Product Family (VIDEO)
- DFI Delivers a Total Solution for Smart Healthcare (VIDEO)
- DFI Delivers a Total Solution for Smart Manufacturing (VIDEO)
- DFI Delivers a Total Solution for Smart Grid (VIDEO)
- Industrial Panel PCs & Displays Catalog (PDF)
- Comprehensive Smart Healthcare Solution (PDF)
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| KS150-BT3845R | 750-KS1500-000G | 15" Panel PC, Intel Atom® E3845, 5-wire Resistive Touch Screen |
| KS150-BT3825P | 750-KS1500-300G | 15" Panel PC, Intel Atom® E3825, Capacitive Touch Screen |
| KS150-BT3825R | 750-KS1500-200G | 15" Panel PC, Intel Atom® E3825, 5-wire Resistive Touch Screen |
| KS150-BT3845P | 750-KS1500-100G | 15" Panel PC, Intel Atom® E3845, Capacitive Touch Screen |
| Item Name | Part Number | Description |
|---|---|---|
| 4GB DDR3L | 785-RSOD34G-L | SODIMM, DDR3L, 4GB, RoHS |
| 2GB DDR3L | 785-RSOD32G-L | SODIMM, DDR3L, 2GB, RoHS |
| 500GB HDD | 785-H25500G | 2.5” SATA HDD, 500GB, RoHS |
| 320GB HDD | 785-H25320G | 2.5” SATA HDD, 320GB, RoHS |
| 1TB SSD | 785-S251TBG | 2.5" SATA SSD, 1TB MLC, RoHS |
| 512GB SSD | 785-S25512G | 2.5" SATA SSD, 512GB MLC, RoHS |
| 256GB SSD | 785-S25256G | 2.5" SATA SSD, 256GB MLC, RoHS |
| 128GB SSD | 785-S25128G | 2.5" SATA SSD, 128GB MLC, RoHS |
| 64GB SSD | 785-S25064G | 2.5" SATA SSD, 64GB MLC, RoHS |
| 32GB SSD | 785-S25032G | 2.5" SATA SSD, 32GB MLC, RoHS |
| 128GB mSATA | 785-MS128GMF | mSATA Card, 128GB MLC, RoHS |
| 64GB mSATA | 785-MS64GMF | mSATA Card, 64GB MLC, RoHS |
| 32GB mSATA | 785-MS32GMF | mSATA Card, 32GB MLC, RoHS |
| 16GB mSATA | 785-MS16GMF | mSATA Card, 16GB MLC, RoHS |
| 8GB mSATA | 785-MS08GMF | mSATA Card, 8GB MLC, RoHS |
| 4GB mSATA | 785-MS04GMF | mSATA Card, 4GB MLC, RoHS |
| Wi-Fi | 761-110091-000G | Wi-Fi kit, RoHS |
| Power Cord | 785-PWRD | Power cord, Standards (USA/EUR/CH), 1.8m, RoHS |
| 60W Power Adapter | 671-106012-000G | 60W, 12V/5A, Level 6, RoHS |
| Panel Mount | 785-150PMK | 15" Panel PC Panel Mount Kit, RoHS |
| Wall Mount | 785-PPCWMK | Standard Panel PC Wall Mount kit, RoHS |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
Hasonló termékekRelated products
BPC420-BW
BPC420-BW, Bar Type Panel PC & Display with Intel Pentium®/Celeron®, designed with IP65 front panel and high-brightness display which is ideal for advertising/public transportation/commercial buildings applications

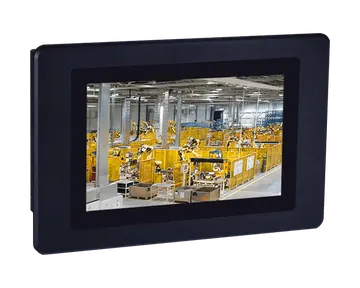

KS070-AL
