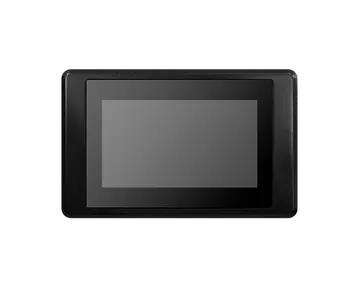

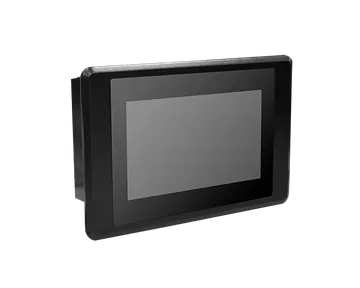

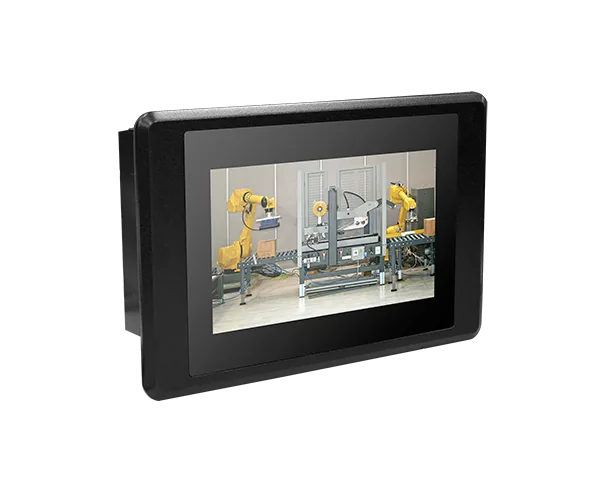

KS070-M8M
DFI launched the latest 7" light touch panel PC, KS070-M8M, powered by ARM-based NXP i.MX8 Series, offering the industrial design for factories and rugged applications. We also provide multiple series of industrial panel PCs for your needs.
- NXP i.MX8M Platform
- 2GB/4GB SDRAM Memory Down
- 7" 1024x600 TFT LCD Panel with capacitive touch screen
- Multiple Expansion: M.2 2230/3042 support
- IP65 front panel protection
Főbb jellemzők
Tanúsítványok
#NXP
#ARM
#IP65 Front Panel Protection
#Android
#12V DC-in
#CE Certification
#FCC Certification
#NXP i.MX 8M
Főbb jellemzőkKey features
- NXP i.MX8M Platform
- 2GB/4GB SDRAM Memory Down
- 7" 1024x600 TFT LCD Panel with capacitive touch screen
- Multiple Expansion: M.2 2230/3042 support
- IP65 front panel protection
System
- Processor
- NXP i.MX 8M Dual Cortex-A53, 1.3GHz
- Memory
- 2GB/4GB SDRAM Memory Down Single Channel LPDDR4 1600MHz
Display and Touch Screen
- Display
- 7” 1024x600 TFT LCD Panel with Capacitive Touch Screen
- Brightness
- 425 cd/m²
- Contrast
- 800:1
- Backlight Lifetime
- 50,000 hours
Storage
- Internal
- 16GB eMMC 1 x Internal Micro SD Socket
Expansion
- Interface
- 1 x M.2 B key 3042/2242 (USB 2.0) 1 x M.2 E key 2230 (PCIe x1/USB 2.0) 1 x Nano SIM slot (Optional)
LED
- Indicators
- 1 x Power LED

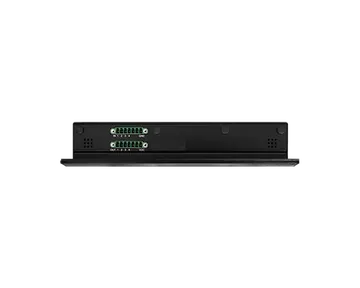

Top I/O
- Wi-Fi Antenna
- 2 x Wi-Fi Module Antenna Hole

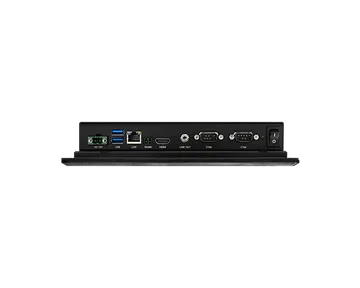

Bottom I/O
- Ethernet
- 1 x GbE (RJ-45)
- Serial
- 1 x RS-232/422/485 1 x RS-485
- USB
- 2 x USB 3.1 (type A)
- Audio
- 1 x Line out
- DIO
- 1 x 8-bit DIO
- Buttons
- 1 x Power Switch
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Power
- Type
- 12V
- Connector
- 2-Pole Terminal Block
OS Support
- OS Support
- Android 9.0 & Yocto 4.3
Environment
- Operating Temperature
- 0 to 60°C -20~70°C by request
- Storage Temperature
- -30 to 85°C
- Relative Humidity
- 85%@65°C (non-condensing)
Mechanism
- Construction
- Aluminum front bezel
- Mounting
- Panel Mount /VESA Mount /Din-rail (Optional)
- Dimensions (W x H x D)
- 235 x 150 x 43.8
- Weight
- 1.2kg
Standards and Certifications
- Shock
- OP: Half-sine, 3G @ 11ms Non-OP: Half-sine, 5G @ 11ms
- Vibration
- OP: Random, 1Grms @ 5~500Hz, 30min Non-OP: Sweep sine, 3Grms @ 10~500Hz, 30min
- Certifications
- CE, FCC Class B
Packing List
- Packing List
- 1 Touch Panel PC 1 Poron foam 1 Quick Installation Guide
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| KS070P-M8M | 750-KS0703-000G | KS070P-M8M: M8M051, Fan-less 7" Panel PC; NXP i.MX 8M Dual Cortex-A53; 2GB DDR4; eMMC 16GB; PCT, Assy. RoHS |
| KS070P-M8M | 750-KS0703-100G | KS070P-M8M: M8M051, Fan-less 7" Panel PC; NXP i.MX 8M Dual Cortex-A53; 4GB DDR4; eMMC 16GB; PCT, Assy. RoHS |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
