KIT-ADN Series
Industrial Open Frame Panel PC, 10.1/12.1", LPDDR5, 1 eDP/LVDS, 1 HDMI, 1 USB-C Alt. Mode, 3 M.2, 2 2.5GbE, 1 1GbE, 3 USB 3.2, 1 USB-C, 5 COM, 1 COM/DIO, 1 SATA 3.0, P-Capacitive Touch Screen, OOB, 0~50°C

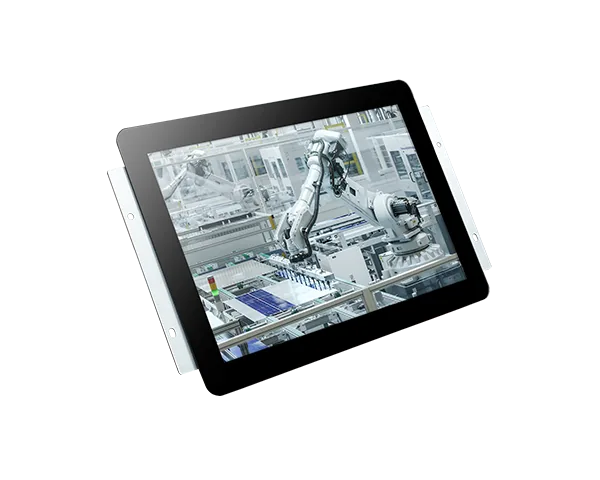

KIT-M8M Series

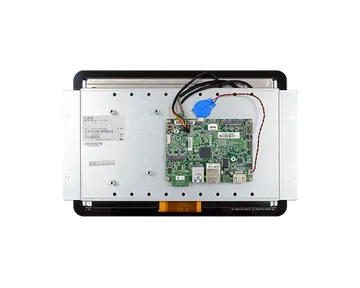

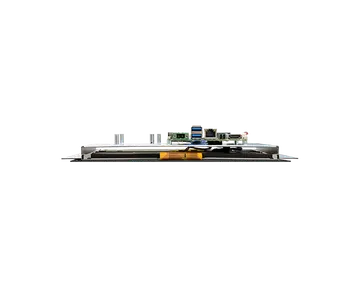

KIT Series is an open frame fanless designed panel PC, powered by ARM-based NXP i.MX 8M Processor, with different sizes including 7/10.1/12.1".
- NXP i.MX 8M Processor
- Open Frame Designed Panel PC
- Touch Screen: P-Capacitive Touch supports 10 points
- LPDDR4-3200 2GB plus 16GB eMMC on board
- Multiple Expansion: M.2 2230 E Key and 3042/2242 B Key
- Easy Integration: Easy installation and maintenance
- ARM-Based System: Support Android9.0 and Yocto4.3
Főbb jellemzők
Tanúsítványok
#LPDDR4
#NXP
#ARM
#Fanless Design
#1G Ethernet
#Linux
#Android
#Multiple Expansion
#RoHS Certification
#CE Certification
#FCC Certification
#NXP i.MX 8M
Főbb jellemzőkKey features
- NXP i.MX 8M Processor
- Open Frame Designed Panel PC
- Touch Screen: P-Capacitive Touch supports 10 points
- LPDDR4-3200 2GB plus 16GB eMMC on board
- Multiple Expansion: M.2 2230 E Key and 3042/2242 B Key
- Easy Integration: Easy installation and maintenance
- ARM-Based System: Support Android9.0 and Yocto4.3

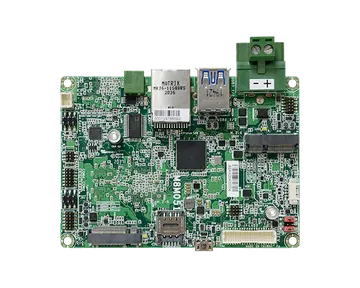

System
- Processor
- NXP i.MX 8M Dual/Quad Cortex-A53, 1.5GHz
- Memory
- 2GB Memory on board, Single channel LPDDR4 up to 3200MHz
Display and Touch Screen
- Brightness
- 500 cd/m²
- Backlight Lifetime
- [KIT070P-M8M]40,000 hours [KIT101P-M8M]50,000 hours [KIT121P-M8M]30,000 hours
- Max. Resolution
- [KIT070P-M8M]800 x 480 [KIT101P-M8M]1280 x 800 [KIT121P-M8M]1024 x 768
- Touch Type
- Projected Capacitive Touch supports 10 points
- Size/Type
- [KIT070P-M8M]7" TFT LCD [KIT101P-M8M]10.1" TFT LCD [KIT121P-M8M]12.1" TFT LCD
- Aspect Ratio
- [KIT070P-M8M]16 : 9 [KIT101P-M8M]16 : 10 [KIT121P-M8M]4 : 3
Storage
- eMMC
- 16GB eMMC on board
Expansion
- Interface
- 1 x M.2 B key 3042/2242 (USB3.1 Gen1) 1 x M.2 E key 2240 (PCIex1 / USB2.0)

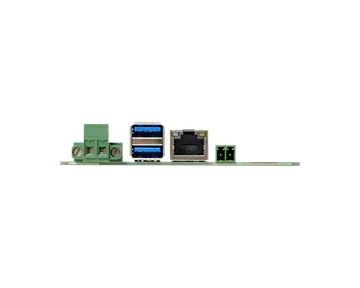

I/O
- Ethernet
- 1 x GbE RJ45
- Serial
- 1 x RS485
- USB
- 2 x USB3.1 Gen1 Type A 1 x Micro USB2.0
Power
- Type
- VDC 12V input / VDC 9-48V input (by optional)
- Connector
- 2-poles Terminal Block
OS Support
- Linux
- Yocto 4.3
- Android
- Android 9.0
Environment
- Operating Temperature
- 0~50°C with 0.6m/s air flow
- Storage Temperature
- -30~80°C
- Relative Humidity
- 5 to 90% RH (non-condensing)
Mechanism
- Dimensions
- [KIT070P-M8M]203 x 118 x 39.09 (mm) [KIT101P-M8M]279.1 x 172.95 x 43.6 (mm) [KIT121P-M8M]312.9 x 226.25 x 45.2 (mm)
- Weight
- [KIT070P-M8M]0.7 Kg [KIT101P-M8M]1.0 Kg [KIT121P-M8M]1.1 Kg
Standards and Certifications
- Certifications
- CE / FCC Class A / RoHS
Packing List
- Packing List
- 1 x Single Box 1 x 2-pin Terminal Block Connector 2 x M2 Screw 1 x Terminal block for RS485
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| KIT070P-M8M | 750-KIT0700-000G | KIT070P-M8M: 7" TFT WVGA Open frame Panel PC; NXP i.MX 8M Dual Cortex-A53, 2GB LPDDR4, 16GB eMMC, PCAP touch, F/G SYSTEM RoHS |
| KIT070P-M8M | 750-KIT0700-100G | KIT070P-M8M: 7" TFT WVGA Open frame Panel PC; NXP i.MX 8M Quad Cortex-A53, 4GB LPDDR4, 16GB eMMC, PCAP touch, F/G SYSTEM RoHS |
| KIT101P-M8M | 750-KIT1010-000G | KIT101P-M8M: 10.1" TFT WXGA Open frame Panel PC; NXP i.MX 8M Dual Cortex-A53, 2GB LPDDR4, 16GB eMMC, PCAP touch, F/G SYSTEM RoHS |
| KIT101P-M8M | 750-KIT1010-100G | KIT101P-M8M: 10.1" TFT WXGA Open frame Panel PC; NXP i.MX 8M Quad Cortex-A53, 4GB LPDDR4, 16GB eMMC, PCAP touch, F/G SYSTEM RoHS |
| KIT121P-M8M | 750-KIT1210-000G | KIT121P-M8M: 12.1" TFT XGA Open frame Panel PC; NXP i.MX 8M Dual Cortex-A53, 2GB LPDDR4, 16GB eMMC, PCAP touch, F/G SYSTEM RoHS |
| KIT121P-M8M | 750-KIT1210-100G | KIT121P-M8M: 12.1" TFT WVGA Open frame Panel PC; NXP i.MX 8M Quad Cortex-A53, 4GB LPDDR4, 16GB eMMC, PCAP touch, F/G SYSTEM RoHS |
