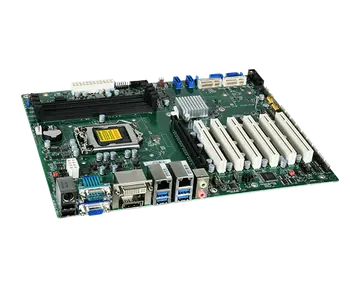

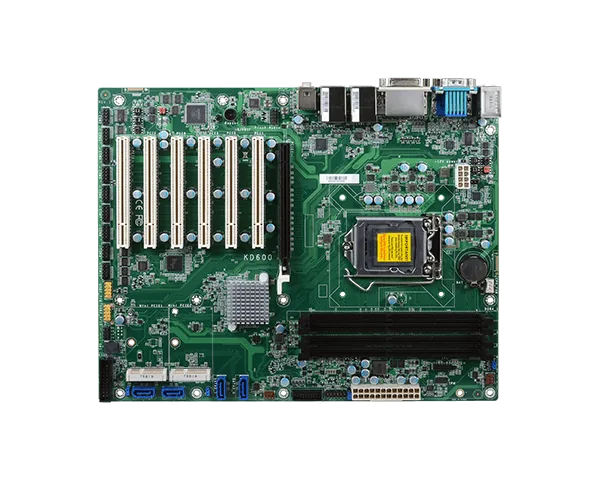

KD600-Q170
KD600-Q170, ATX with 6th/7th Gen Intel® or Pentium®/Celeron®, designed with multiple interfaces, desktop platform which is ideal for industrial control/machine vision/defect inspection/medical imaging applications
- 6th/7th Gen Intel® Core™ with Intel® Q170
- 4 DDR4 DIMM up to 64GB
- Three independent displays: VGA, DVI-D, DP++
- Multiple expansion: 6 PCI, 1 PCIex16, 1 Mini PCIe
- Rich I/O: 2 Intel GbE, 10 COM, 6 USB 3.0, 6 USB 2.0
- 15-Year CPU Life Cycle Support Until Q1' 32 (Based on Intel IOTG Roadmap)
Főbb jellemzők
#Intel
#Mini PCIe
#PCIe x16
#Windows
#Linux
#DVI-I
#DVI-D
#VGA
#DP
#DDR4
#RoHS Certification
#Legacy ISA/PCI Expansion Port
Főbb jellemzőkKey features
- 6th/7th Gen Intel® Core™ with Intel® Q170
- 4 DDR4 DIMM up to 64GB
- Three independent displays: VGA, DVI-D, DP++
- Multiple expansion: 6 PCI, 1 PCIex16, 1 Mini PCIe
- Rich I/O: 2 Intel GbE, 10 COM, 6 USB 3.0, 6 USB 2.0
- 15-Year CPU Life Cycle Support Until Q1' 32 (Based on Intel IOTG Roadmap)
System
- Processor
- 6th/7th Generation Intel® Core™ /Pentium®/Celeron® LGA 1151 Socket Processors with TDP up to 95W
- Chipset
- Intel® Q170 Chipset
- Memory
- 4 288-pin DIMM up to 64GB Dual Channel DDR4 2133/2400MHz
- BIOS
- Insyde SPI 128Mbit
Graphics
- Controller
- Intel® HD Gen 9 Graphics
- Feature
- OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
- Display
- 1 x VGA 1 x DVI-I (DVI-D signal) 1 x DP++ VGA: resolution up to 1920x1200 @ 60Hz DVI-D: resolution up to 1920x1200 @ 60Hz DP++: resolution up to 4096x2160 @ 60Hz
- Triple Displays
- VGA + DVI-D + DP++
Expansion
- Interface
- 6 x PCI 1 x Mini PCIe 1 x PCIex16
Audio
- Audio Codec
- Realtek ALC888S-VD2-GR
Ethernet
- Controller
- 1 x Intel® I219LM PCIe (10/100/1000Mbps) (only Core i7/i5 supports iAMT) 1 x Intel® I211AT PCIe (10/100/1000Mbps)

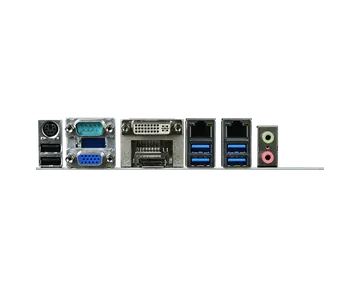

Rear I/O
- Ethernet
- 2 x GbE (RJ-45)
- Serial
- 1 x RS-232/422/485 (RS-232 w/ power) (DB-9)
- USB
- 4 x USB 3.0 2 x USB 2.0
- PS/2
- 1 x PS/2 (mini-DIN-6)
- Display
- 1 x VGA 1 x DVI-I (DVI-D signal) 1 x DP++
- Audio
- 1 x Line-out, 1 x Mic-in, 1 x Line-in (opt., MOQ required)
Internal I/O
- Serial
- 1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch) 8 x RS-232
- USB
- 2 x USB 3.0 (2.00mm pitch) 4 x USB 2.0 (2.54mm pitch)
- Audio
- 1 x Front Aduio, 1 x S/PDIF
- SATA
- 4 x SATA 3.0 (up to 6Gb/s) 1 x mSATA (co-lay with SATA_4) RAID 0/1/5/10
- DIO
- 1 x 8-bit DIO
- LPC
- 1 x LPC
- SMBus
- 1 x SMBus
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- Infi neon TPM2.0/1.2 (opt., MOQ required)
Power
- Type
- ATX
- Connector
- 8-pin ATX 12V power 24-pin ATX power
- Consumption
- Typical: i7-7700: 3.3V @ 0.45A (1.485Watt); 5V @ 0.64A (3.2Watt); 12V @ 0.59A (7.08Watt) Max.: i7-7700:3.3V @ 0.44A (1.452Watt); 5V @ 0.76A (3.8Watt); 12V @ 7.41A (88.92Watt)
- RTC Battery
- CR2032 Coin Cell
OS Support
- OS Support
- Windows 7 32/64-bit Window 8.1 64-bit Windows 10 64-bit Linux Note: 7th Gen CPU SKU ONLY support Windows 10 64-bit & Linux.
Environment
- Temperature
- Operating: 0 to 60°C Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- 489,358 hrs @ 25°C; 269,297 hrs @ 45°C; 165,958 hrs @ 60°C Calculation model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled
Mechanism
- Dimensions
- ATX form factor 305mm (12") x 244mm (9.6")
- Height
- PCB: 1.6mm Top Side: 37.35mm Bottom Side: 4.4mm
Packing List
- Packing List
- 1 KD600-Q170 motherboard 1 COM port cable (W/Bracket, Length: 300mm, 2 x COM ports): A81-015026-023G 1 Serial ATA data cable (Length: 500mm): 332-553001-005G 1 I/O shield: A49-KD6000-000G 643-KD6001-000G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| KD600-Q170 | 770-KD6002-100G | 4 DDR4 DIMM, 2 LAN, 10 COM, 12 USB, 0 to 60°C |
| KD600-Q170 | 770-KD6002-400G | 4 DDR4 DIMM, 2 LAN, 10 COM, 12 USB, 1 TPM 2.0, 0 to 60°C |
| KD600-Q170 | 770-KD6002-500G | 4 DDR4 DIMM, 2 LAN, 10 COM, 12 USB, 1 TPM 1.2, 0 to 60°C |
| Item Name | Part Number | Description |
|---|---|---|
| USB 2.0 port cable | A81-001066-016G | Length: 350mm |
| USB 3.0 port cable | A81-001052-023G | Length: 320mm |
| COM port cable | A81-015026-023G | W/Bracket, Length: 300mm, 2 x COM ports |
| Serial ATA data cable | 332-553001-005G | Length: 500mm |
| I/O shield | A49-KD6000-000G | |
| Thermal Solution | A71-103004-000G A71-101158-000G 761-103001-000G | For 35W, Height: 37.3mm For 65W, Height: 74.47mm For 95W, Height: 77.2mm |
| DP to HDMI Dongle | 612-D2H13M-000G |
