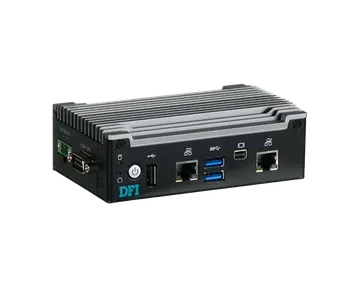

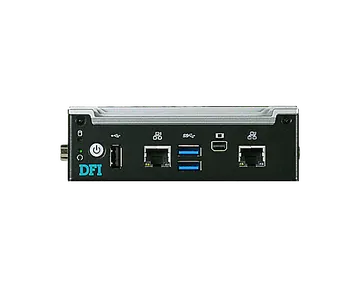

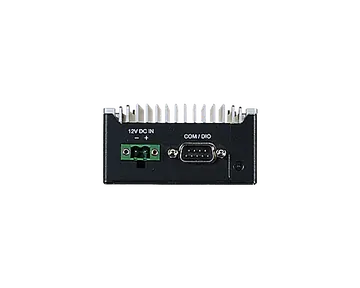

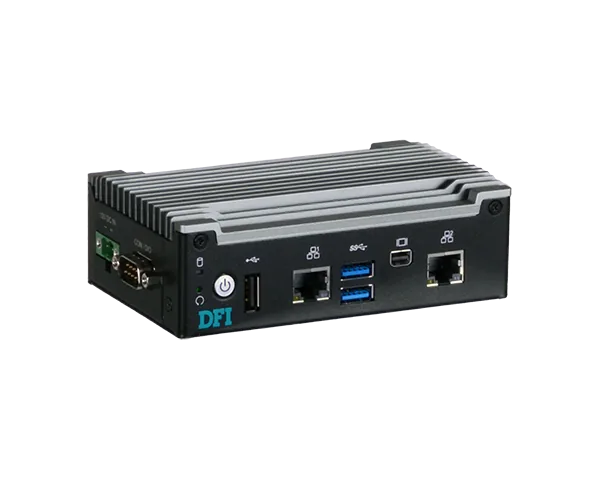

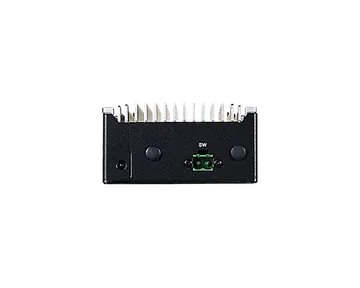

EC90A-AL, Fanless Embedded System with Intel Atom®, designed with unprecedented high mobility which is ideal for IIOT sensors/video systems/harsh environments applications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| EC90A-AL1030-E3930-162 | 750-EC90A0-000G | Fanless, Intel Atom® x5-E3930, 1 COM, 2 USB 3.0, 1 USB 2.0, 2 LAN, 1 MiniDP++, 16GB eMMC, 2GB RAM, RoHS |
| EC90A-AL1030-E3930-164 | 750-EC90A0-100G | Fanless, Intel Atom® x5-E3930, 1 COM, 2 USB 3.0, 1 USB 2.0, 2 LAN, 1 MiniDP++, 16GB eMMC, 4GB RAM, RoHS |
| EC90A-AL1030-E3940-324 | 750-EC90A0-200G | Fanless, Intel Atom® x5-E3940, 1 COM, 2 USB 3.0, 1 USB 2.0, 2 LAN, 1 MiniDP++, 32GB eMMC, 4GB RAM, RoHS |
| Item Name | Part Number | Description |
|---|---|---|
| Wi-Fi | 785-WIFIKT | Wi-Fi Kit, RoHS |
| Power Cord | 785-PWRD | Power Cord, Standards (USA/EUR/CH), 1.8m, RoHS |
| Power Adapter | 671-106012-000G 671-106013-000G | 60W, 12V/5A, Level 6, RoHS 60W, 12V/5A (-30 to 70°C), Level 6, RoHS |
| Wall Mount | 761-EC8000-000G | EC90A-AL Wall Mount Kit, RoHS |
| DIN Rail Mount | 761-EC90A0-000G | EC90A-AL DIN Rail Mount Kit, RoHS |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
The BMAL box module also supports DFI’s Adaptive Display Platform (ADP) Technology. It is an innovative panel PC solution that offers the flexibility of modularized integration of panel PC components for expedited product development and shortened time to market.
