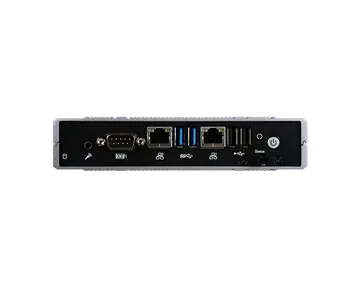

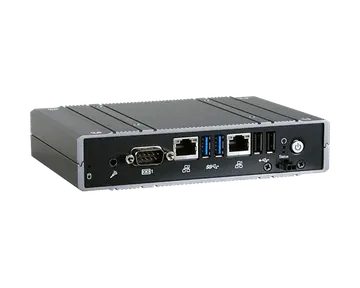

EC800-AL, Fanless Embedded System with Intel Atom®/Pentium®, designed with rugged design which is ideal for Smart Charging/industrial control/automation applications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|

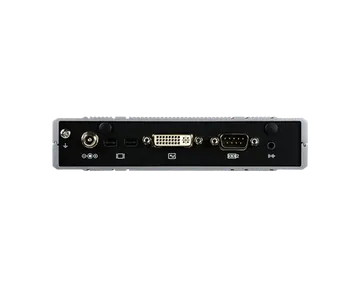

| EC800-AL552CPD-E3950-4 | 750-EC8004-000G | Fanless, Intel Atom E3950, 2 Mini-DP, 1 DVI-D, 2 LAN, 2 COM, 4 USB, 4GB LPDDR4 onboard, -20 to 60°C, RoHS |

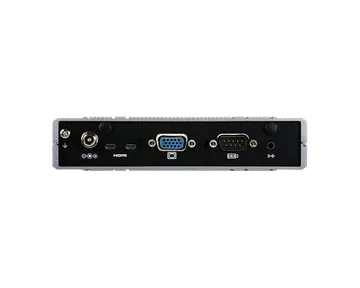

| EC800-AL552CHV-E3950-4 | 750-EC8004-100G | Fanless, Intel Atom E3950, 2 Micro-HDMI, 1 VGA, 2 LAN, 2 COM, 4 USB, 4GB LPDDR4 onboard, -20 to 60°C, RoHS |
| EC800-AL552TPD-E3950-8 | 750-EC8004-200G | Fanless, Intel Atom E3950, 2 Mini-DP, 1 DVI-D, 2 LAN, 2 COM, 4 USB, 8GB LPDDR4 onboard, -40 to 70°C (wide-temp), RoHS |
| EC800-AL552THV-E3950-8 | 750-EC8004-300G | Fanless, Intel Atom E3950, 2 Micro-HDMI, 1 VGA, 2 LAN, 2 COM, 4 USB, 8GB LPDDR4 onboard, -40 to 70°C (wide-temp), RoHS |
| EC800-AL552CPD-N4200-4 | 750-EC8004-400G | Fanless, Intel Pentium N4200, 2 Mini-DP, 1 DVI-D, 2 LAN, 2 COM, 4 USB, 4GB LPDDR4 onboard, -20 to 60°C, RoHS |
| EC800-AL552THV-E3930-4 | 750-EC8004-500G | Fanless, Intel Atom E3930, 2 Micro-HDMI, 1 VGA, 2 LAN, 2 COM, 4 USB, 4GB LPDDR4 onboard, -40 to 70°C (wide-temp), RoHS |
| EC800-AL552CHV-E3930-2 | 750-EC8004-600G | Fanless, Intel Atom E3930, 2 Micro-HDMI, 1 VGA, 2 LAN, 2 COM, 4 USB, 2GB LPDDR4 onboard, -20 to 60°C, RoHS |
| EC800-AL552CPD-N4200-8 | 750-EC8004-700G | Fanless, Intel Atom N4200, 2 Mini-DP, 1 DVI-D, 2 LAN, 2 COM, 4 USB, 8GB LPDDR4 onboard, -20 to 60°C, RoHS |
| EC800-AL552CHV-N4200-4 | 750-EC8004-800G | Fanless, Intel Atom N4200, 2 Micro-HDMI, 1 VGA, 2 LAN, 2 COM, 4 USB, 4GB LPDDR4 onboard, -20 to 60°C, RoHS |
| Item Name | Part Number | Description |
|---|---|---|
| 128GB mSATA | 785-MW128GMH | mSATA Card, 128GB MLC, -40 to 85°C, RoHS |
| 64GB mSATA | 785-MW64GMH | mSATA Card, 64GB MLC, -40 to 85°C, RoHS |
| 32GB mSATA | 785-MW32GMH | mSATA Card, 32GB MLC, -40 to 85°C, RoHS |
| Wi-Fi | 761-EC8002-100G | M.2 2230 802.11abgn/ac+BT4.2, Intel AC 8260.NGWMG, with 2x RPSMA Cable & 2x Dipole Antenna Kit, M2 Screw |
| Power Cord | 785-PWRD | Power Cord, Standards (USA/EUR/CH), 1.8m, RoHS |
| 60W Power Adapter | 671-106012-000G 671-106013-000G 671-106011-000G | 60W, 12V/5A, Level 6, RoHS 60W, 12V/5A (-30 to 70°C), Level 6, RoHS 60W, 19V/3.15A, Level 6, RoHS |
| Wall Mount | 761-EC8000-000G | EC800 Wall Mount Kit, RoHS |
| VESA Mount | 761-EC8000-100G | EC800 Mount Kit (75x75mm, 100x100mm), RoHS |
| DIN Rail Mount | 761-EC8002-000G | EC800-AL RAIL BRACKET KITS, RoHS |
| 8GB M.2 | 785-M208GM42 | M.2 2242 8GB, MLC |
| 16GB M.2 | 785-M216GM42 | M.2 2242 16GB, MLC |
| 32GB M.2 | 785-M232GM42 | M.2 2242 32GB, MLC |
| 64GB M.2 | 785-M264GM42 | M.2 2242 64GB, MLC |
| 128GB M.2 | 785-M2128GM42 | M.2 2242 128GB, MLC |
| 256GB M.2 | 785-M2256GM42 | M.2 2242 256GB, MLC |
| 512GB M.2 | 785-M2512GM42 | M.2 2242 512GB, MLC |
| Extend Power Switch Cable | A81-004070-016G | Power cable 2pin stripped, length 1000mm |
| DC Cord | A81-004031-007G | UL 1185 (5.5x2.5x9.5mm) with Nut to stripped and tinned, length 1000mm |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
The BMAL box module also supports DFI’s Adaptive Display Platform (ADP) Technology. It is an innovative panel PC solution that offers the flexibility of modularized integration of panel PC components for expedited product development and shortened time to market.
