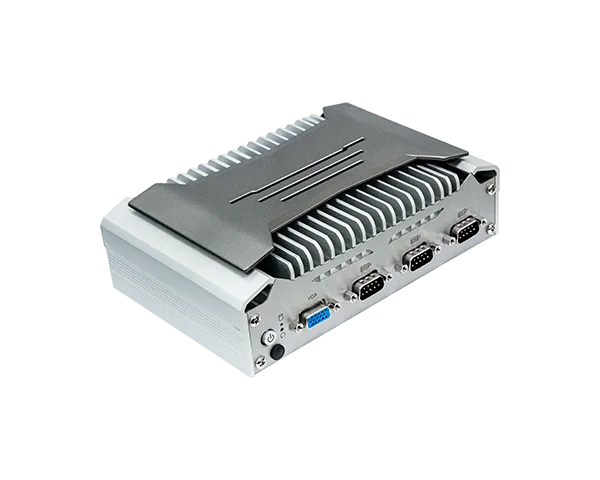

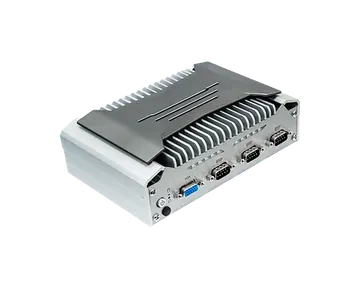

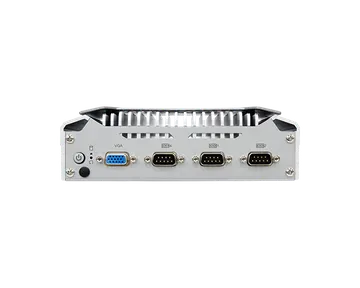

DFI's EC70A-TGU is the 5G-module support Fanless Embedded System powered by 11th Gen Intel® Core Processors. It is ideal for AMR/AGV, machine vision and other industrial automation applications. EC70A-TGU supports DDR4, 5G cellular, 3 M.2, 2 HDMI, 1 VGA, 4 COM, up to 4 LAN or 6 USB 3.1.
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|

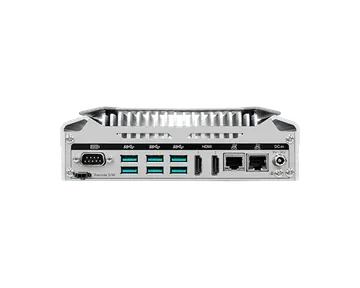

| EC70A-TGU4062-C5E-8 | 750-EC70A2-000G | Celeron 6305E, 8GB memory, 4 COM, 6 USB, 2 HDMI, 1 VGA, 2 LAN, DC 9~36V input, TPM2.0, F/G SYSTEM RoHS |
| EC70A-TGU4062-I3E-8 | 750-EC70A2-100G | i3-1115G4E, 8GB memory, 4 COM, 6 USB, 2 HDMI, 1 VGA, 2 LAN, DC 9~36V input, TPM2.0, F/G SYSTEM RoHS |
| EC70A-TGU4062-I5E-8 | 750-EC70A2-200G | i5-1145G7E, 8GB memory, 4 COM, 6 USB, 2 HDMI, 1 VGA, 2 LAN, DC 9~36V input, TPM2.0, F/G SYSTEM RoHS |
| EC70A-TGU4062-I7E-8 | 750-EC70A2-300G | i7-1185G7E, 8GB memory, 4 COM, 6 USB, 2 HDMI, 1 VGA, 2 LAN, DC 9~36V input, TPM2.0, F/G SYSTEM RoHS |

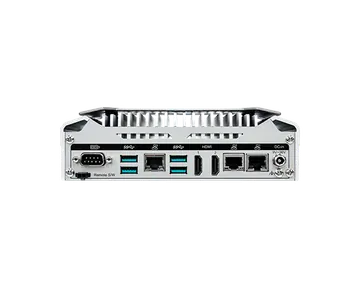

| EC70A-TGU4043-C5E-8 | 750-EC70A2-400G | Celeron 6305E, 8GB memory, 4 COM, 4 USB, 2 HDMI, 1 VGA, 3 LAN, DC 9~36V input, TPM2.0, F/G SYSTEM RoHS |
| EC70A-TGU4043-I3E-8 | 750-EC70A2-500G | i3-1115G4E, 8GB memory, 4 COM, 4 USB, 2 HDMI, 1 VGA, 3 LAN, DC 9~36V input, TPM2.0, F/G SYSTEM RoHS |
| EC70A-TGU4043-I5E-8 | 750-EC70A2-600G | i5-1145G7E, 8GB memory, 4 COM, 4 USB, 2 HDMI, 1 VGA, 3 LAN, DC 9~36V input, TPM2.0, F/G SYSTEM RoHS |
| EC70A-TGU4043-I7E-8 | 750-EC70A2-700G | i7-1185G7E, 8GB memory, 4 COM, 4 USB, 2 HDMI, 1 VGA, 3 LAN, DC 9~36V input, TPM2.0, F/G SYSTEM RoHS |

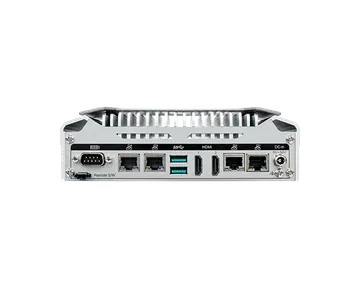

| EC70A-TGU4024-I7E-8 | 750-EC70A2-800G | i7-1185G7E, 8GB memory, 4 COM, 2 USB, 2 HDMI, 1 VGA, 4 LAN, DC 9~36V input, TPM2.0, F/G SYSTEM RoHS |
| EC70A-TGU4062-I7R-8 | 750-EC70A2-900G | i7-1185GRE, 8GB memory, 4 COM, 6 USB, 2 HDMI, 1 VGA, 2 LAN, DC 9~36V input, TPM2.0, F/G SYSTEM RoHS |
| EC70A-TGU4024-I5E8 | 750-EC70A2-A00G | i5-1145G7E, 8GB memory, 4 COM, 2 USB, 2 HDMI, 1 VGA, 4 LAN, DC 9~36V input, TPM2.0, F/G SYSTEM RoHS |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
