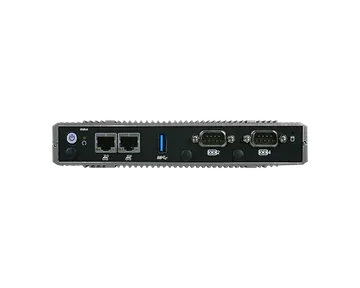

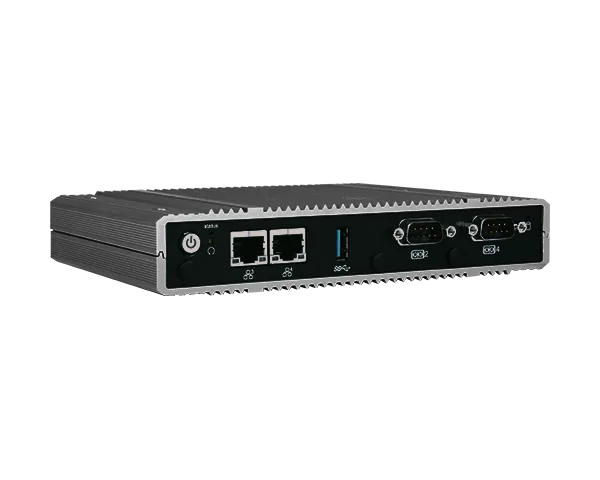

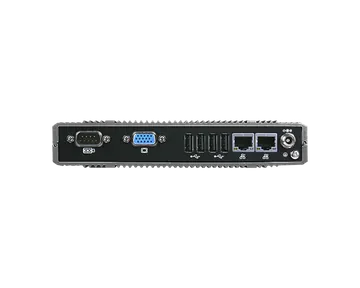

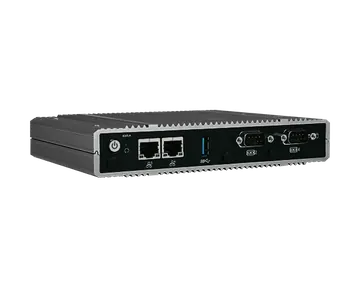

The EC700-BT3054 takes full advantage of the Intel® Atom™ E3800 processor which is packed with extensive I/O capabilities including 4 Gigabit LAN, 3 COM ports, 5 USB ports to provide increased mobile computing. The optional onboard eMMC and microSD socket are designed for additional storage in space-limited environments.To ensure efficient communication, the system supports Wi-Fi and 3G/GPRS via Mini PCIe slots. EC700-BT3054 is equipped with 1 SIM card socket and 3 antenna holes making the system more suitable for environments that require wireless applications.
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| EC700-BT3054-192 | 750-EC7001-100G | Fanless, Intel Celeron J1900, 4 LAN, 1 VGA, 3 COM, 5 USB, 2GB DDR3L onboard, RoHS |
| EC700-BT3054-454 | 750-EC7001-000G | Fanless, Intel Atom E3845, 4 LAN, 1 VGA, 3 COM, 5 USB, 4GB DDR3L onboard, RoHS |
| Item Name | Part Number | Description |
|---|---|---|
| 500GB HDD | 785-H25500G | 2.5” SATA HDD, 500GB, RoHS |
| 320GB HDD | 785-H25320G | 2.5” SATA HDD, 320GB, RoHS |
| 1TB SSD | 785-S251TBG | 2.5" SATA SSD, 1TB MLC, RoHS |
| 512GB SSD | 785-S25512G | 2.5" SATA SSD, 512GB MLC, RoHS |
| 256GB SSD | 785-S25256G | 2.5" SATA SSD, 256GB MLC, RoHS |
| 128GB SSD | 785-S25128G | 2.5" SATA SSD, 128GB MLC, RoHS |
| 64GB SSD | 785-S25064G | 2.5" SATA SSD, 64GB MLC, RoHS |
| 128GB mSATA | 785-MS128GMF | mSATA Card, 128GB MLC, RoHS |
| 64GB mSATA | 785-MS64GMF | mSATA Card, 64GB MLC, RoHS |
| 32GB mSATA | 785-MS32GMF | mSATA Card, 32GB MLC, RoHS |
| 16GB mSATA | 785-MS16GMF | mSATA Card, 16GB MLC, RoHS |
| 8GB mSATA | 785-MS08GMF | mSATA Card, 8GB MLC, RoHS |
| 4GB mSATA | 785-MS04GMF | mSATA Card, 4GB MLC, RoHS |
| Wi-Fi | 761-110091-000G | Wi-Fi Kit, RoHS |
| 3G + GPS | 612-110040-600G | 3G + GPS Kit, RoHS |
| Power Cord | 785-PWRD | Power Cord, Standards (USA/EUR/CH), 1.8m, RoHS |
| 60W Power Adapter | 671-106011-000G 671-106013-000G 671-106012-000G | 60W, 19V/3.15A, Level 6, RoHS 60W, 12V/5A (-30 to 70°C), Level 6, RoHS 60W, 12V/5A, Level 6, RoHS |
| Wall Mount | 761-EC8000-000G | EC700/800 Wall Mount Kit, RoHS |
| VESA Mount | 761-EC7000-100G | EC700 VESA Mount Kit, RoHS |
| DIN Rail Mount | 761-EC8000-200G | EC700/800 DIN Rail Mount Kit, RoHS |
| DC Cord | A81-004031-007G | UL 1185 (5.5x2.5x9.5mm) with Nut to stripped and tinned, length 1000mm |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
