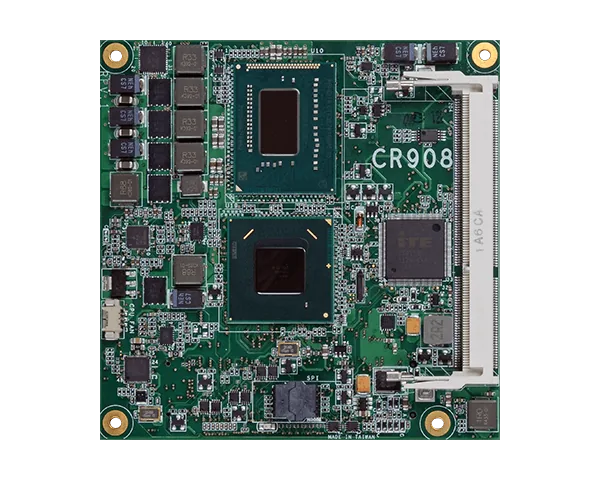

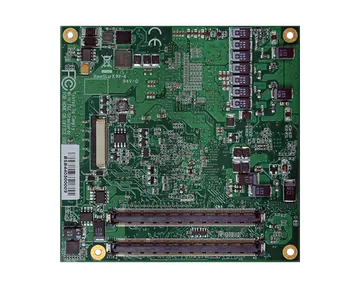

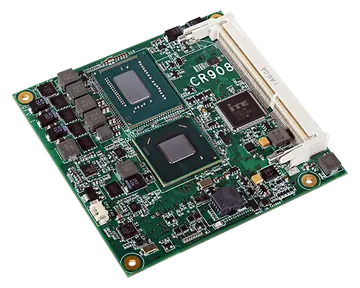

CR908-B
COM Express Type 6, 3rd/2nd Gen Intel® Core™, DDR3/3L, 1 PCIe x16, 8 USB, 4 SATA, 1 VGA, 1 LVDS, 3 DDI
- 3rd/2nd Gen Intel® Core™, Intel® QM77 Chipset
- Rich I/O: 1 Intel GbE, 4 USB 3.0, 4 USB 2.0
- Multiple expansion: 1 PCIe x16, 4 SATA, 1 LPC, 1 I2C, 1 SMBus
- 1 VGA, 1 LVDS, 3 DDI (HDMI/DVI/DP/SDVO)
- Dual channel DDR3L 1600MHz SODIMM up to 8GB
- 7-Year CPU Life Cycle Support Until Q3' 18 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#Intel
#Compact Size
#1G Ethernet
#PCIe x16
#Windows
#HDMI
#VGA
#DDR3
#DDR3L
#RoHS Certification
#UL Certification
#CE Certification
#FCC Certification
#UL-US Certification
Főbb jellemzőkKey features
- 3rd/2nd Gen Intel® Core™, Intel® QM77 Chipset
- Rich I/O: 1 Intel GbE, 4 USB 3.0, 4 USB 2.0
- Multiple expansion: 1 PCIe x16, 4 SATA, 1 LPC, 1 I2C, 1 SMBus
- 1 VGA, 1 LVDS, 3 DDI (HDMI/DVI/DP/SDVO)
- Dual channel DDR3L 1600MHz SODIMM up to 8GB
- 7-Year CPU Life Cycle Support Until Q3' 18 (Based on Intel IOTG Roadmap)
System
- Processor
- BGA 1023 packaging technology - 3rd Generation Intel® Core™ processors (22nm process technology) Intel® Core™ i7-3610QE (6M Cache, up to 3.3 GHz); 45W Intel® Core™ i5-3610ME (3M Cache, up to 3.3 GHz); 35W Intel® Core™ i3-3120ME (3M Cache, 2.4 GHz); 35W - 2nd Generation Intel® Core™ processors (32nm process technology) Intel® Core™ i7-2710QE (6M Cache, up to 3.0 GHz); 45W Intel® Core™ i5-2510E (3M Cache, up to 3.1 GHz); 35W Intel® Core™ i3-2330E (3M Cache, 2.2 GHz); 35W Intel® Celeron® B810 (2M Cache, 1.6 GHz); 35W
- Chipset
- Intel® QM77 Chipset
- Memory
- One 204-pin SODIMM up to 8GB Single Channel DDR3L 1600MHz
- BIOS
- UEFI SPI 64Mbit
Graphics
- Controller
- Intel® HD Graphics 4000 (3rd generation processors) Intel® HD Graphics 3000 (2nd generation processors) Intel® HD Graphics (Intel® Celeron™ processors)
- Feature
- DirectX Video Acceleration (DXVA) for accelerating video processing - Full AVC/VC1/MPEG2 HW Decode Supports DirectX 11/10.1/10/9 and OpenGL 3.0 (3rd generation processors) Supports DirectX 10.1/10/9 and OpenGL 3.0 (2nd generation processors)
- Display
- 1 x VGA 1 x LVDS 3 x DDI (HDMI/DVI/DP/SDVO) VGA: resolution up to 1920x1200 @ 60Hz LVDS: dual channel 36/48-bit, resolution up to 1920x1200 @ 60Hz HDMI/DVI/DP: resolution up to 1920x1200 @ 60Hz
Expansion
- Interface
- 1 x PCIe x16 (Gen 3) 1 x PCIe x4 and 3 PCIe x1 or 7 PCIe x1 1 x LPC 1 x I2C 1 x SMBus 2 x UART (TX/RX)
Audio
- Interface
- HD Audio
Ethernet
- Controller
- 1 x Intel® 82579LM (10/100/1000Mbps)
I/O
- USB
- 4 x USB 3.0 4 x USB 2.0
- SATA
- 2 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10 2 x SATA 2.0 (up to 3Gb/s)
- GPIO
- 1 x 8-bit GPIO
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Power
- Type
- 12V, 5VSB, VCC_RTC (ATX mode) 12V, VCC_RTC (AT mode)
- Consumption
- 35.42 W with i7-3612QE at 2.1GHz and 1x 2GB DDR3 SODIMM
OS Support
- OS Support
- Windows XP Professional x86 & SP3 (32-bit) Windows XP Professional x64 & SP2 (64-bit) Windows 7 Ultimate x86 & SP1 (32-bit) Windows 7 Ultimate x64 & SP1 (64-bit) Windows 8 Enterprise x86 (32-bit) Windows 8 Enterprise x64 (64-bit)
Environment
- Temperature
- Operating: 0 to 60°C Storage: -20 to 85°C
- Humidity
- Operating: 10 to 90% RH Storage: 10 to 90% RH
- MTBF
- TBD
Mechanism
- Dimensions
- COM Express® Compact 95mm (3.74") x 95mm (3.74")
- Compliance
- PICMG COM Express® R2.1, Type 6
Standards and Certifications
- Certifications
- CE, FCC, RoHS, UL
Packing List
- Packing List
- 1 CR908 board Heat sink with fan:A71-111008-000G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| CR908-B3612QE | 770-CR9081-000G | Intel® Core™ i7-3612QE, 6M Cache, up to 3.10 GHz, 35W |
| CR908-B3615QE | 770-CR9081-600G | Intel® Core™ i7-3615QE, 6M Cache, up to 3.30 GHz, 45W |
| CR908-B3555LE | 770-CR9081-100G | Intel® Core™ i7-3555LE, 4M Cache, up to 3.20 GHz, 25W |
| CR908-B3517UE | 777-CR9081-200G | Intel® Core™ i7-3517UE, 4M Cache, up to 2.80 GHz, 17W, w/o cooler |
| CR908-B3517UE | 770-CR9081-200G | Intel® Core™ i7-3517UE, 4M Cache, up to 2.80 GHz, 17W |
| CR908-B3610ME | 770-CR9081-300G | Intel® Core™ i5-3610ME, 3M Cache, up to 3.30 GHz, 35W |
| CR908-B3120ME | 770-CR9081-400G | Intel® Core™ i3-3120ME, 3M Cache, 2.40 GHz, 35W |
| CR908-B3217UE | 777-CR9081-500G | Intel® Core™ i3-3217UE, 3M Cache, 1.60 GHz, 17W, w/o cooler |
| CR908-B3217UE | 770-CR9081-500G | Intel® Core™ i3-3217UE, 3M Cache, 1.60 GHz, 17W |
| Item Name | Part Number | Description |
|---|---|---|
| Heat spreader | A71-011011-000G | |
| COM331-B carrier board kit | 770-COM331-000G |
