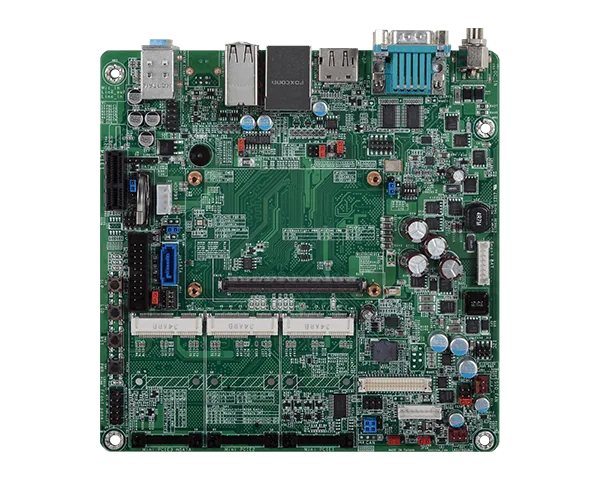

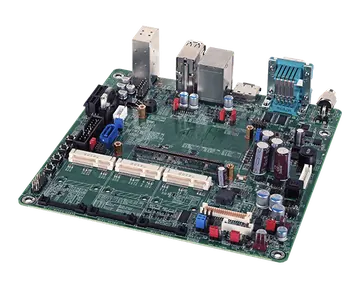

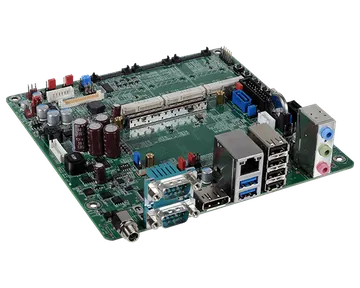

COM100-B
Mini-ITX, COMe Mini Modules, 1 PCIe x1, 3 Mini PCIe, 1 Lan, 6 USB, 1 SATA 3.0, 2 COM, 1 LVDS, 1 DP
- Mini-ITX form factor
- Multiple displays: 1 DP, 1 LVDS
- Supports Mini modules
- COM Express® R2.1, Pin-out Type 10
- Rich I/O: 1 GbE, 6 USB, 2 COM
Tanúsítványok
#Mini PCIe
#19V DC-in
#RoHS Certification
#CE Certification
#FCC Certification
#UKCA Certification
Főbb jellemzőkKey features
- Mini-ITX form factor
- Multiple displays: 1 DP, 1 LVDS
- Supports Mini modules
- COM Express® R2.1, Pin-out Type 10
- Rich I/O: 1 GbE, 6 USB, 2 COM
Graphics
- Display
- 1 x DP 1 x LVDS
Expansion
- Interface
- 1 x PCIe x1 3 x Mini PCIe 1 x SIM Card Socket
Audio
- Audio Codec
- Realtek ALC886

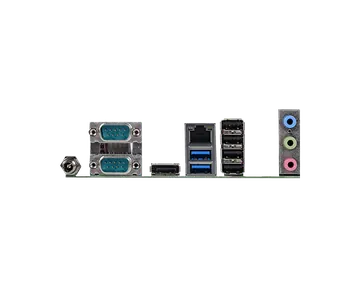

Rear I/O
- Ethernet
- 1 x GbE (RJ-45)
- Serial
- 2 x serial ports(TX/RX)
- USB
- 2 x USB 3.0 4 x USB 2.0
- Display
- 1 x DP
- Audio
- 1 x Line-in 1 x Line-out 1 x Mic-in
Internal I/O
- Serial
- 1 x Serial Interface Connector (TX/RX)
- Display
- 1 x LVDS LCD Panel Connector 1 x LCD/Inverter Power
- Audio
- 1 x Audio (Line-out/Mic-in) 1 x S/PDIF
- SATA
- 1 x SATA 3.0 (up to 6Gb/s) 1 x SATA power connector
- DIO
- 1 x 8-bit DIO
- LPC
- 1 x LPC
- SMBus
- 1 x SMBus
- I2C
- 1 x I2C
Power
- Type
- 12V, 5VSB, VCC_RTC (ATX mode) 12V, VCC_RTC (AT mode)
- Supply
- 5V~19V DC-in jack
Environment
- Temperature
- Operating: 0 to 60°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- 695553 hrs @ 25°C; 429751 hrs @ 45°C; 282525 hrs @ 60°C Calculation model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled
Mechanism
- Dimensions
- Mini-ITX Form Factor 170mm (6.7") x 170mm (6.7")
- Compliance
- PICMG COM Express® R2.1, Type 10
Standards and Certifications
- Certifications
- CE, FCC, RoHS, UKCA
Packing List
- Packing List
- 1 COM100-B board 1 SATA data cable 1 SATA power cable 1 I/O shield
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Item Name | Part Number | Description |
|---|---|---|
| Power adapter (120W, 19V, Level 6) | 671-110003-100G | |
| SATA data cable | A81-002101-016G | |
| I/O shield | A49-COM100-000G |
