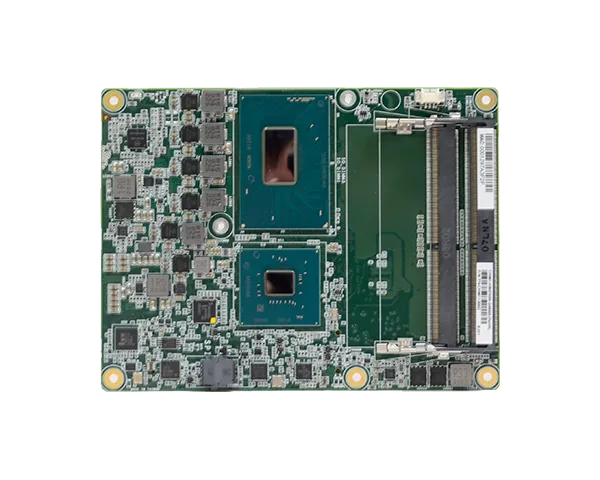

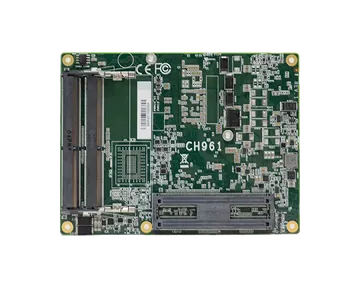

CH961
COM Express Type 6, 8th/9th Gen Intel® Core™, Intel® CM246/QM370/HM370, DDR4, 1 PCIe x16, 8 PCIe x1,12 USB, 4 SATA 3.0, 1 VGA, 1 LVDS, 2 DDI
- Dual channel DDR4 2666MHz SODIMM up to 96GB
- Four display ports: VGA*/DDI + LVDS*/eDP + 2 DDI Supports three independent displays
- DP++ resolution supports up to 4096x2304 @ 60Hz
- Multiple expansion: 1 PCIe x16, 8 PCIe x1
- Rich I/O: 1 Intel GbE, 4 USB 3.1, 8 USB 2.0
Főbb jellemzők
Tanúsítványok
#IoT
#Intel
#PCIe x16
#Windows
#Linux
#HDMI
#VGA
#DP
#DDR4
#RoHS Certification
#CE Certification
#FCC Certification
#UKCA Certification
Főbb jellemzőkKey features
- Dual channel DDR4 2666MHz SODIMM up to 96GB
- Four display ports: VGA*/DDI + LVDS*/eDP + 2 DDI Supports three independent displays
- DP++ resolution supports up to 4096x2304 @ 60Hz
- Multiple expansion: 1 PCIe x16, 8 PCIe x1
- Rich I/O: 1 Intel GbE, 4 USB 3.1, 8 USB 2.0
System
- Processor
- [CH961-CM246] 8th/9th Generation Intel® Core™ Processors, BGA 1440 [CH961-CM246] Intel® Core™ i7-8850H, 6 Cores, 12M Cache, 2.6GHz (4.3GHz), 45W [CH961-CM246] Intel® Core™ i5-8400H, 4 Cores, 8M Cache, 2.5GHz (4.2GHz), 45W [CH961-CM246] Intel® Xeon® E-2176M, 6 Cores, 12M Cache, 2.7GHz (4.4GHz), 45W [CH961-CM246] Intel® Xeon® E-2276ML, 6 Cores, 12M Cache, 2.0GHz (4.2GHz), 25W [CH961-CM246] Intel® Xeon® E-2276ME, 6 Cores, 12M Cache, 2.8GHz (4.5GHz), 45W [CH961-CM246] Intel® Xeon® E-2254ML, 4 Cores, 8M Cache, 1.7GHz (3.5GHz), 25W [CH961-CM246] Intel® Xeon® E-2254ME, 4 Cores, 8M Cache, 2.6GHz (3.8GHz), 45W [CH961-CM246] Intel® Celeron® G4930E, 2 Cores, 2M Cache, 2.4GHz (2.4GHz), 35W [CH961-QM370] 8th/9th Generation Intel® Core™ Processors, BGA 1440 [CH961-QM370] Intel® Core™ i7-8850H, 6 Cores, 12M Cache, 2.6GHz (4.3GHz), 45W [CH961-QM370] Intel® Core™ i5-8400H, 4 Cores, 8M Cache, 2.5GHz (4.2GHz), 45W [CH961-QM370] Intel® Core™ i3-8100H, 4 Cores, 6M Cache, 3.0GHz, 45W [CH961-QM370] Intel® Core™ i7-9850HL, 6 Cores, 9M Cache, 1.9GHz (4.1GHz), 25W [CH961-QM370] Intel® Core™ i7-9850HE, 6 Cores, 9M Cache, 2.7GHz (4.4GHz), 45W [CH961-QM370] Intel® Xeon® E-2176M, 6 Cores, 12M Cache, 2.7GHz (4.4GHz), 45W [CH961-HM370] 8th/9th Generation Intel® Core™ Processors, BGA 1440 [CH961-HM370] Intel® Core™ i5-8400H, 4 Cores, 8M Cache, 2.5GHz (4.2GHz), 45W [CH961-HM370] Intel® Core™ i3-8100H, 4 Cores, 6M Cache, 3.0GHz, 45W [CH961-HM370] Intel® Core™ i3-9100HL, 4 Cores, 6M Cache, 1.6GHz (2.9GHz), 25W [CH961-HM370] Intel® Celeron® G5600E, 2 Cores, 4M Cache, 3.9GHz, 35W [CH961-HM370] Intel® Celeron® G4932E, 2 Cores, 2M Cache, 1.9GHz (1.9GHz), 25W
- Chipset
- [CH961-CM246] Intel® CM246 Chipset (Support ECC) [CH961-QM370] Intel® QM370 Chipset [CH961-HM370] Intel® HM370 Chipset
- Memory
- Four 260-pin SODIMM up to 96GB Dual Channel DDR4 2666MHz
- BIOS
- AMI SPI 128Mbit
Graphics
- Controller
- Intel® HD Graphics
- Feature
- OpenGL up to 4.5, DirectX 11, OpenCL 2.1 HW Decode: HEVC/H.265, H.264, M/JPEG, MPEG2, VC1/WMV9, VP8 (8-bit), VP9 (10-bit) HW Encode: HEVC/H.265, M/JPEG, MPEG2, VP8
- Display
- 1 x VGA/DDI (DDI available upon request) 1 x LVDS/eDP (eDP available upon request) 2 x DDI (HDMI/DVI/DP++) VGA: resolution up to 2560x1600 @ 60Hz LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz HDMI: resolution up to 2560x1600@60Hz/4096x2160@24Hz DVI: resolution up to 1920x1200 @ 60Hz DP++: resolution up to 4096x2304 @ 60Hz
- Triple Displays
- VGA + LVDS + DDI or VGA + DDI 1 + DDI 2 eDP + 2 DDI (available upon request)
Storage
- SSD
- PCIe x4, 64GB~1TB Share NvME SSD PCIE 0/1 Port with SATA 2/3 Port SSD is alternative function with SATA 2/3 Port SSD and 2nd DDR4 SO-DIMM(DIMM2) is alternative function. Micron 2100AI for normal temp. Micron 2100AT for wide temp.
Expansion
- Interface
- 1 x PCIe x16 8 x PCIe x1 1 x LPC 1 x I2C 1 x SMBus 2 x UART (TX/RX)
Audio
- Interface
- HD Audio
Ethernet
- Controller
- [CH961-CM246] 1 x Intel® I219LM/V with iAMT12.0 PCIe (10/100/1000Mbps) [CH961-QM370] 1 x Intel® I219LM/V with iAMT12.0 PCIe (10/100/1000Mbps) [CH961-HM370] 1 x Intel® I219LM/V PCIe (10/100/1000Mbps)
I/O
- USB
- 4 x USB 3.1 8 x USB 2.0
- SATA
- 4 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10
- DIO
- 1 x 8-bit DIO (Default 4 inputs and 4 outputs)
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- TPM2.0 by request.
Power
- Type
- 8.5V~20V, 5VSB, VCC_RTC (ATX mode) 8.5V~20V, VCC_RTC (AT mode)
- Consumption
- Typical: 12V @ 0.88A (10.56Watt) Max.: 12V @ 3.15A (37.8Watt)
OS Support
- OS Support
- Windows: Windows 10 IoT Enterprise 64-bit Linux
Environment
- Temperature
- Operating: 0 to 60°C, -40 to 85°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- 257,700 hrs @ 25°C; 173,475 hrs @ 45°C; 83892 hrs @ 60°C excluding accessories Calculation Model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled
Mechanism
- Dimensions
- COM Express® Basic 95mm (3.74") x 125mm (4.9")
- Compliance
- PICMG COM Express® R3.0, Type 6
Standards and Certifications
- Certifications
- CE, FCC, UKCA, RoHS
Packing List
- Packing List
- 1 CH961 board 1 Cooler - Standard: 0 to 60°C (Height: 36.58mm, A71-111104-000G) - Wide Temp: -40 to 85°C (Height: 51.98mm, A71-111104-010G)
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| CH961-CM246TS-2276ME | 770-CH9611-000G | E-2276ME, 4 SODIMM, VGA, LVDS, 1 x GbE, 4 x USB3.1, 8 x USB2.0, ATX/AT, Cooler, -40~85°C |
| CH961-QM370TS-9850HE | 770-CH9611-100G | i7-9850HE, 4 SODIMM, VGA, LVDS, 1 x GbE, 4 x USB3.1, 8 x USB2.0, ATX/AT, Cooler, -40~85°C |
| CH961-HM370BS-9100HL | 770-CH9611-200G | i3-9100HL, 4 SODIMM, DDI, eDP, 1 x GbE, 4 x USB3.1, 8 x USB2.0, ATX/AT, Cooler, 0~60°C |
| CH961-HM370BS-G4932E | 770-CH9611-300G | G4932E, 4 SODIMM, VGA, LVDS, 1 x GbE, 4 x USB3.1, 8 x USB2.0, ATX/AT, Cooler, 0~60°C |
| Item Name | Part Number | Description |
|---|---|---|
| COM332-B(R.B1) carrier board kit | 770-CM3322-000G | |
| Cooler (Height: 11mm) for 0 to 60°C | A71-111104-000G | COM EXPRESS COOLER, AL6063-T5 125*95.2*36.58mm, Nickel Plating, 2 BALL, 12V, 1*3P/1.25mm, L=150mm, R127010BUACR72aR, FOR CH961, AMF-368(FEVER)RoHS |
| Cooler (Height: 11mm) for -40 to 85°C | A71-111104-010G | COM EXPRESS COOLER, AL6063-T5 125*95.2*51.98mm, Nickel Plating, 2 BALL, 12V, 1*3P/1.25mm, L=150mm, PF8025B1-0000-G99, FOR CH961 WIDE-TEMP, AMF- 368A(FEVER)RoHS |
