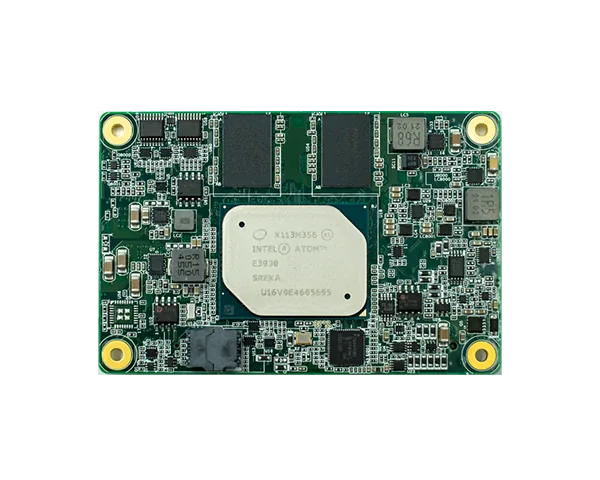

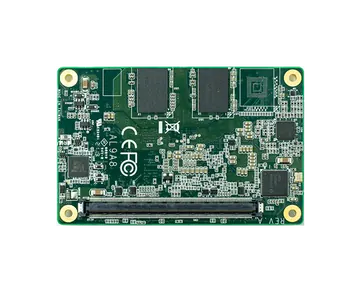

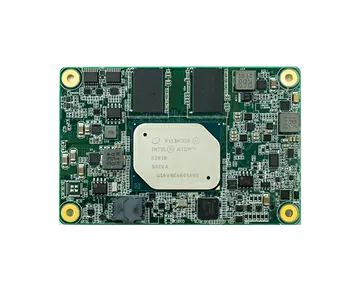

COM Express Type 10, Intel Atom® E3900, LPDDR4, 4 PCIe x1, 2 SATA 3.0, 10 USB, 1 LVDS/eDP, 1 DDI, eMMC 128GB
- Intel Atom® E3900 Processor Series
- Multiple expansions: 4 PCIe x1
- Rich I/O: 1 Intel GbE, 2 USB 3.0, 8 USB 2.0
- 1 LVDS/eDP, 1 DDI (HDMI/DP++) Supports dual displays: DDI + LVDS/eDP
- Dual Channel LPDDR4-2400MHz Memory Down up to 8GB
- 15-Year CPU Life Cycle Support Until Q4' 31 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#Slim Bootloader
#IoT
#Intel
#Fanless Design
#Compact Size
#4K2K Display
#Windows
#Linux
#HDMI
#DP
#Multiple Expansion
#DDR4
#CE Certification
#FCC Certification
#UKCA Certification
Főbb jellemzőkKey features
- Intel Atom® E3900 Processor Series
- Multiple expansions: 4 PCIe x1
- Rich I/O: 1 Intel GbE, 2 USB 3.0, 8 USB 2.0
- 1 LVDS/eDP, 1 DDI (HDMI/DP++) Supports dual displays: DDI + LVDS/eDP
- Dual Channel LPDDR4-2400MHz Memory Down up to 8GB
- 15-Year CPU Life Cycle Support Until Q4' 31 (Based on Intel IOTG Roadmap)
System
- Processor
- Intel Atom® Processor E3900 Series, BGA 1296 Intel Atom® x7-E3950 Processor, Quad Core, 2M Cache, 1.6GHz (2.0GHz), 12W Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W Intel Atom® x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6.5W Intel® Pentium® Processor N4200, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W Intel® Celeron® Processor N3350, Dual Core, 2M Cache, 1.1GHz (2.4GHz), 6W
- Memory
- 4GB/8GB Memory Down Dual Channel LPDDR4-2400MHz
- BIOS
- AMI SPI 128Mbit (supports UEFI boot only)
Graphics
- Controller
- Intel® HD Graphics
- Feature
- OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1, WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
- Display
- 1 x DDI (HDMI/DP++) 1 x LVDS/eDP LVDS: single channel 24-bit, resolution up to 1366x768 @ 60Hz HDMI: resolution up to 4096x2160 @ 30 Hz DP++: resolution up to 4096x2304 @ 60Hz / 3840x2160 @ 60Hz eDP: resolution up to 4096x2304 @ 60Hz
- Dual Displays
- DDI + LVDS DDI + eDP
Expansion
- Interface
- 4 x PCIe x1 (Gen 2) 1 x SDIO (available upon request) 1 x LPC 1 x I2C 1 x SMBus 1 x SPI 2 x UART (TX/RX)
Audio
- Internal
- HD Audio
Ethernet
- Controller
- 1 x Intel® I210AT (10/100/1000Mbps) (0°C to 60°C) 1 x Intel® I210IT (10/100/1000Mbps) (-40°C to 85°C)
I/O
- USB
- 2 x USB 3.0 8 x USB 2.0
- SATA
- 2 x SATA 3.0 (up to 6Gb/s)
- SSD
- 1 x eMMC up to 128 GByte
- GPIO
- 1 x 6-bit GPIO
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- BIOS default support FTPM, TPM2.0 by request.
Power
- Type
- 4.75V~20V, 5VSB, VCC_RTC (ATX mode) 4.75V~20V, VCC_RTC (AT mode)
- Consumption
- Typical: E3940: 12V @ 0.34A (4.08W) Max.: E3940:12V @ 1.62A (19.44W)
OS Support
- OS Support (UEFI Only)
- Windows: Windows 10 IoT Enterprise 64-bit Linux
Environment
- Temperature
- Operating: -5 to 65°C, -40 to 85°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- 1,090,551 hrs @ 25°C; 509,776 hrs @ 45°C; 283,622 hrs @ 60°C Calculation model: Telcordia Issue 2 Environment: GB, GC – Ground Benign, Controlled
Mechanism
- Dimensions
- COM Express® Mini 84mm (3.30") x 55mm (2.16")
- Compliance
- PICMG COM Express® R2.1, Type 10
Standards and Certifications
- Certifications
- CE, FCC, UKCA
Packing List
- Packing List
- · 1 AL9A8 board · 1 Heat sink: A71-008160-000G (E Series) A71-008160-010G (N Series)
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| AL9A8-B40-E3930 | 770-AL9A81-000G | 4GB LPDDR4,LVDS,R.A F/G MOTHER BOARD RoHS |
| AL9A8-T80-E3940 | 770-AL9A81-100G | 8GB LPDDR4,LVDS,-40~85℃,R.A F/G MOTHER BOARD RoHS |
| AL9A8-T80-E3950 | 770-AL9A81-200G | 8GB LPDDR4,LVDS,-40~85℃,R.A F/G MOTHER BOARD RoHS |
| AL9A8-B80-N4200 | 770-AL9A81-300G | AL9A8-B80-N4200：8GB LPDDR4,LVDS,R.A F/G MOTHER BOARD RoHS |
| Item Name | Part Number | Description |
|---|---|---|
| COM100-B carrier board kit | 770-COM104-000G | |
| Heat Spreader | A71-808350-000G |
