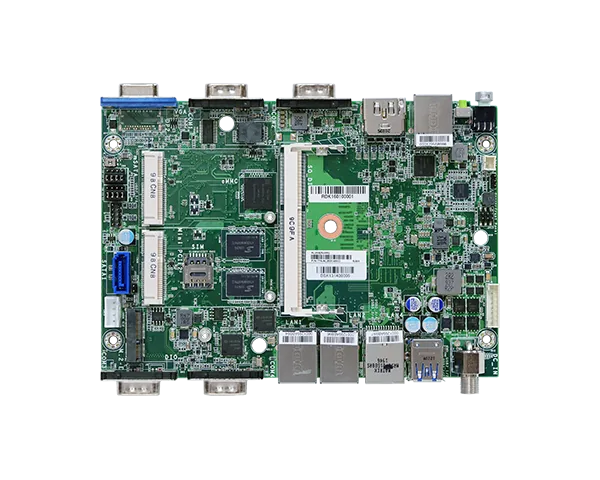

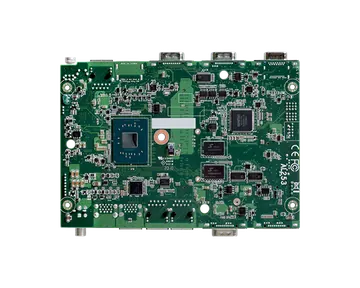

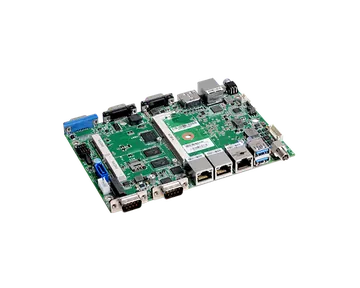

AL253
4" SBC, Intel Atom® Processor E3900, 1 DDR3L, 1 x M.2 E key, 2 Mini PCIe, 1 VGA/DP(opt.), 1 DP++
- Intel Atom® Processor E3900 Series
- 2GB/4GB/8GB Memory onboard + one 204-pin SO-DIMM, Dual Channel DDR3L 1866MHz
- Two independent displays: DP++ + VGA/DP(opt.)
- DP resolution up to 4096x2160 @ 60Hz
- Multiple OS support: Win 7/Win 10/Linux
- Rich I/O: max. 4 Intel GbE, 4 COM, 4 USB 3.1 Gen1, 2 USB 2.0
- Extended operating temperature: -40 to 85°C
Főbb jellemzők
Tanúsítványok
#IoT
#Intel
#Mini PCIe
#Windows
#Linux
#VGA
#DP
#DDR3L
#RoHS Certification
#CE Certification
#FCC Certification
#UKCA Certification
Főbb jellemzőkKey features
- Intel Atom® Processor E3900 Series
- 2GB/4GB/8GB Memory onboard + one 204-pin SO-DIMM, Dual Channel DDR3L 1866MHz
- Two independent displays: DP++ + VGA/DP(opt.)
- DP resolution up to 4096x2160 @ 60Hz
- Multiple OS support: Win 7/Win 10/Linux
- Rich I/O: max. 4 Intel GbE, 4 COM, 4 USB 3.1 Gen1, 2 USB 2.0
- Extended operating temperature: -40 to 85°C
System
- Processor
- Intel Atom® Processor E3900 Series, BGA 1296 Intel Atom® x7-E3950 Processor, Quad Core, 2M Cache, 1.6GHz (2.0GHz), 12W Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W Intel Atom® x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6W Intel® Pentium® Processor N4200, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W
- Memory
- 2GB/4GB/8GB Memory onboard + one 204-pin SO-DIMM Dual Channel DDR3L 1866MHz The system supports a combined maximum memory size of 8GB total
- BIOS
- AMI SPI 128Mbit (support UEFI/legacy mode)
Graphics
- Controller
- Intel® HD Graphics
- Feature
- OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0 HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4 HW Encode: H.264, MPEG2, MPEG4
- Display
- 1 x DP++ 1 x VGA/DP(opt.) DP: resolution up to 4096x2160 @ 60Hz VGA: resolution up to 1920x1200 @ 60Hz
- Dual Displays
- DP++ + VGA/DP(opt.)
Storage
- eMMC
- 1 x 8G/16G/32G/64G (opt.)
Expansion
- Interface
- 1 x Full-size mSATA (SATA, USB is available by BOM option) 1 x Full-size Mini PCIe (USB2.0/LPC/PCIe, PCIe is available for config. with 4 LAN) 1 x M.2 (2230 E Key) (PCIe/USB2.0)
Ethernet
- Controller
- 4 x Intel® I211AT PCIe, co-lay with I210IT (10/100/1000Mbps)

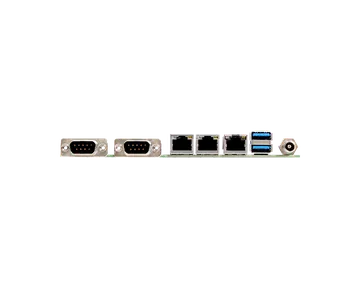

Rear I/O
- Ethernet
- up to 4 x GbE (RJ-45) (1 x GbE colay 2 x USB 3.1 Gen1)
- Serial
- 4 x RS-232/422/485 (1 x RS-232/422/485 colay 1 x 8-bit DIO by jumper setting)
- USB
- up to 4 x USB 3.1 Gen1 (2 x USB 3.1 Gen1 colay 1 x GbE)
- Display
- 1 x DP++ 1 x VGA/DP(opt.)
Internal I/O
- USB
- 2 x USB 2.0 (2.0mm pitch)
- SATA
- 1 x SATA 3.0 (up to 6Gb/s, support SSD only) 1 x SATA Power
- DIO
- 1 x 8-bit DIO
- Other I/O
- 1 x Front Panel
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- fTPM2.0
Power
- Type
- 9~36V DC input
- Connector
- DC Jack
- Consumption
- Typical: E3950:12V, 5.88Watt Max.: E3950:12V, 18.84Watt
- RTC Battery
- CR2032 Coin Cell, link main board with cable
OS Support
- Microsoft
- Windows 10 IoT Enterprise 64-bit Windows 7 (/WES7) 32/64-bit (project support only)
- Linux
- Linux
Environment
- Temperature
- Operating: 0 to 60°C/-40 to 85°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- 4305UE: 619,529 hrs @ 25°C; 407,983 hrs @ 45°C ; 281,090 hrs @ 60°C; 142,546 hrs @ 85°C Calculation model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled
Mechanism
- Dimensions
- 4" SBC Form Factor 1 165mm (6.49") x 115mm (4.53")
- Height
- PCB's thickness: 1.6mm Top Side(CPU side): 6.1mm, Bottom Side: 16.4mm
Standards and Certifications
- Certifications
- CE, FCC, RoHS, UKCA
Packing List
- Packing List
- 1 AL253 board 1 Heat sink: - for E series 0~60°C (Height: 29mm) A71-008329-010G - for E series -40~85°C (Height: 39mm) A71-008329-000G - for N series 0~60°C (Height: 29mm) A71-008329-020G 1 Serial ATA data with power cable A81-002008-000G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| AL253-BN-40E50 | 770-AL2531-000G | Intel Atom® x7-E3950, 1 DDR4 SODIMM + 4GB memory down, DP++ + VGA, 4 LAN, 4 COM, 2 USB 3.1 Gen1, 2 USB 2.0, 9~36VDC, Fanless, 0°C to 60°C |
| AL253-BN-20E30 | 770-AL2531-100G | Intel Atom® x5-E3930, 1 DDR4 SODIMM + 2GB memory down, DP++ + VGA, 4 LAN, 4 COM, 2 USB 3.1 Gen1, 2 USB 2.0, 9~36VDC, Fanless, 0°C to 60°C |
| AL253-TN-40E50 | 770-AL2531-200G | Intel Atom® x7-E3930, 1 DDR4 SODIMM + 4GB memory down, DP++ + VGA, 4 LAN, 4 COM, 2 USB 3.1 Gen1, 2 USB 2.0, 9~36VDC, Fanless, -40°C to 85°C |
| AL253-TN-20E30 | 770-AL2531-300G | Intel Atom® x5-E3930, 1 DDR4 SODIMM + 2GB memory down, DP++ + VGA, 4 LAN, 4 COM, 2 USB 3.1 Gen1, 2 USB 2.0, 9~36VDC, Fanless, -40°C to 85°C |
| AL253-BN-40E40 | 770-AL2531-400G | Intel Atom® x5-E3940, 1 DDR4 SODIMM + 4GB memory down, DP++ + VGA, 4 LAN, 4 COM, 2 USB 3.1 Gen1, 2 USB 2.0, 9~36VDC, Fanless, 0°C to 60°C |
| AL253-TN-40E40 | 770-AL2531-500G | Intel Atom® x5-E3940, 1 DDR4 SODIMM + 4GB memory down, DP++ + VGA, 4 LAN, 4 COM, 2 USB 3.1 Gen1, 2 USB 2.0, 9~36VDC, Fanless, -40°C to 85°C |
| AL253-BN-20N00 | 770-AL2531-600G | Intel® Pentium® N4200, 1 DDR4 SODIMM + 4GB memory down, DP++ + VGA, 4 LAN, 4 COM, 2 USB 3.1 Gen1, 2 USB 2.0, 9~36VDC, Fanless, 0°C to 60°C |
| Item Name | Part Number | Description |
|---|---|---|
| USB port cable | A81-001032-016G | Length: 200mm |
| COM port cable | 332-753040-000G | Length: 250mm, 1 x COM ports |
| Power adapter | 671-106012-000G 671-112009-100G | 60W, 12V 120W, 19V |
| Heat spreader for E series | A71-808330-000G | Height: 11mm |
| Heat spreader for N series | A71-808330-010G | Height: 11mm |
